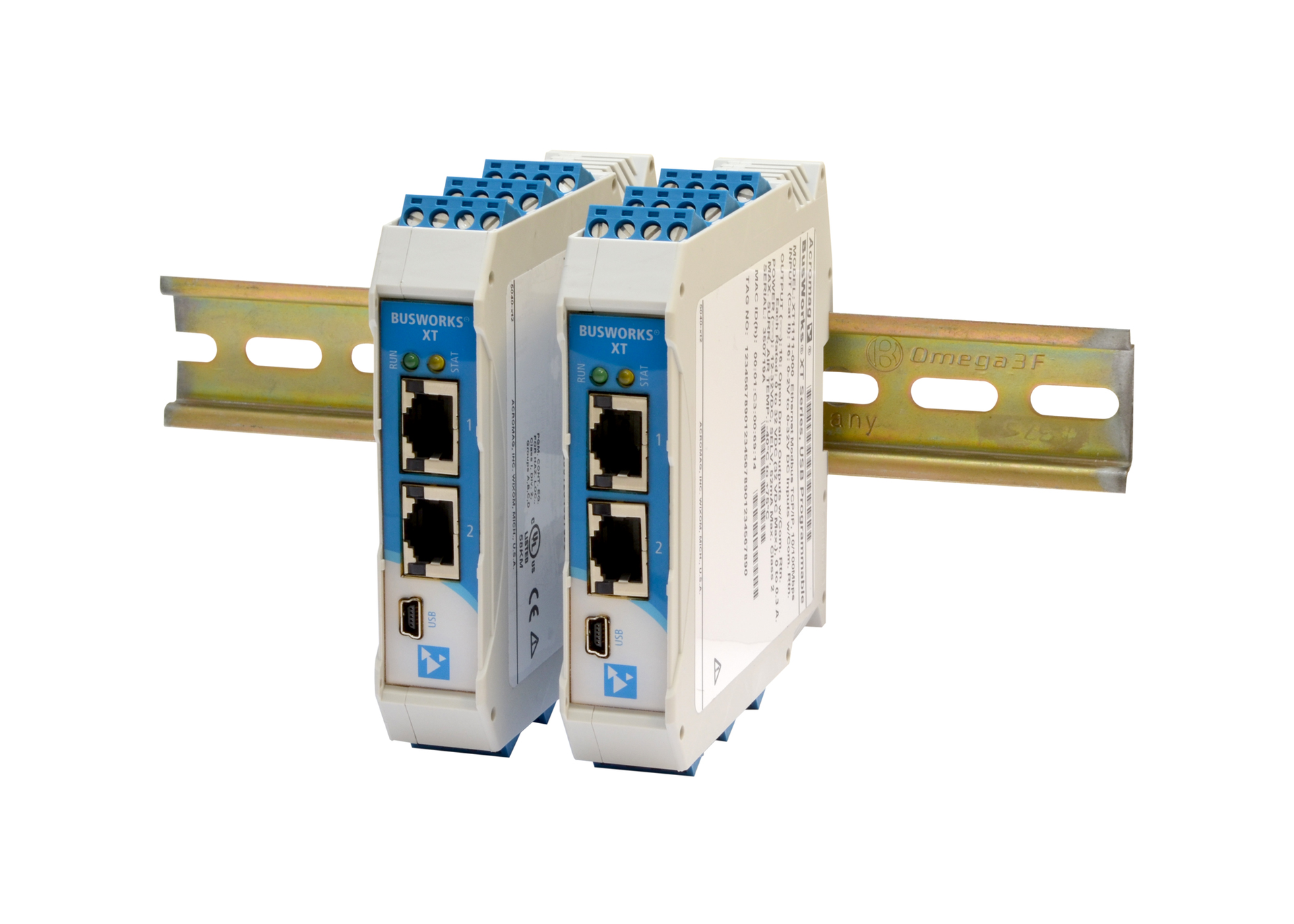

The XT1230 and XT1240 models provide a 16-channel interface for single-ended analog current or voltage input signals with Ethernet/IP, Modbus/TCP, Profinet, or i2o peer-to-peer communication. They feature dual Ethernet ports, removable front-facing terminal blocks, and DIN rail power bus support. The USB-to-PC connection and free Windows software makes configuration quick and uncomplicated. Suitable for use in harsh environments, all modules operate from -40 to 70 °C with noise immunity, surge protection, and CE compliance. UL/cUL Class 1 Division 2 Zone 2 hazardous location approval is pending. The XT1230 accepts current inputs of 0-11 mA, 0-20 mA, 4-20 mA, ±20 mA, or 0-20 amps AC with optional toroid sensor. The XT1240 accommodates ±5 V, ±10 V, 0-5 V, or 0-10 V input ranges. All units run off a 12-32 VDC power source (2.8 W) at the terminals or through an integrated power connector bussed along the DIN rail that can provide primary or redundant power. Each model offers a choice of Ethernet/IP, Profinet, or Modbus TCP/IP protocols with peer-to-peer i2o communication support. Dual 10/100 Ethernet ports allow daisy-chaining units together to simplify cabling and minimize the network switches required, reducing overall system costs.
>>For more information on this product, click here
Acromag
www.acromag.com
877.214.6267, 877.295.7035
877.295.7082
