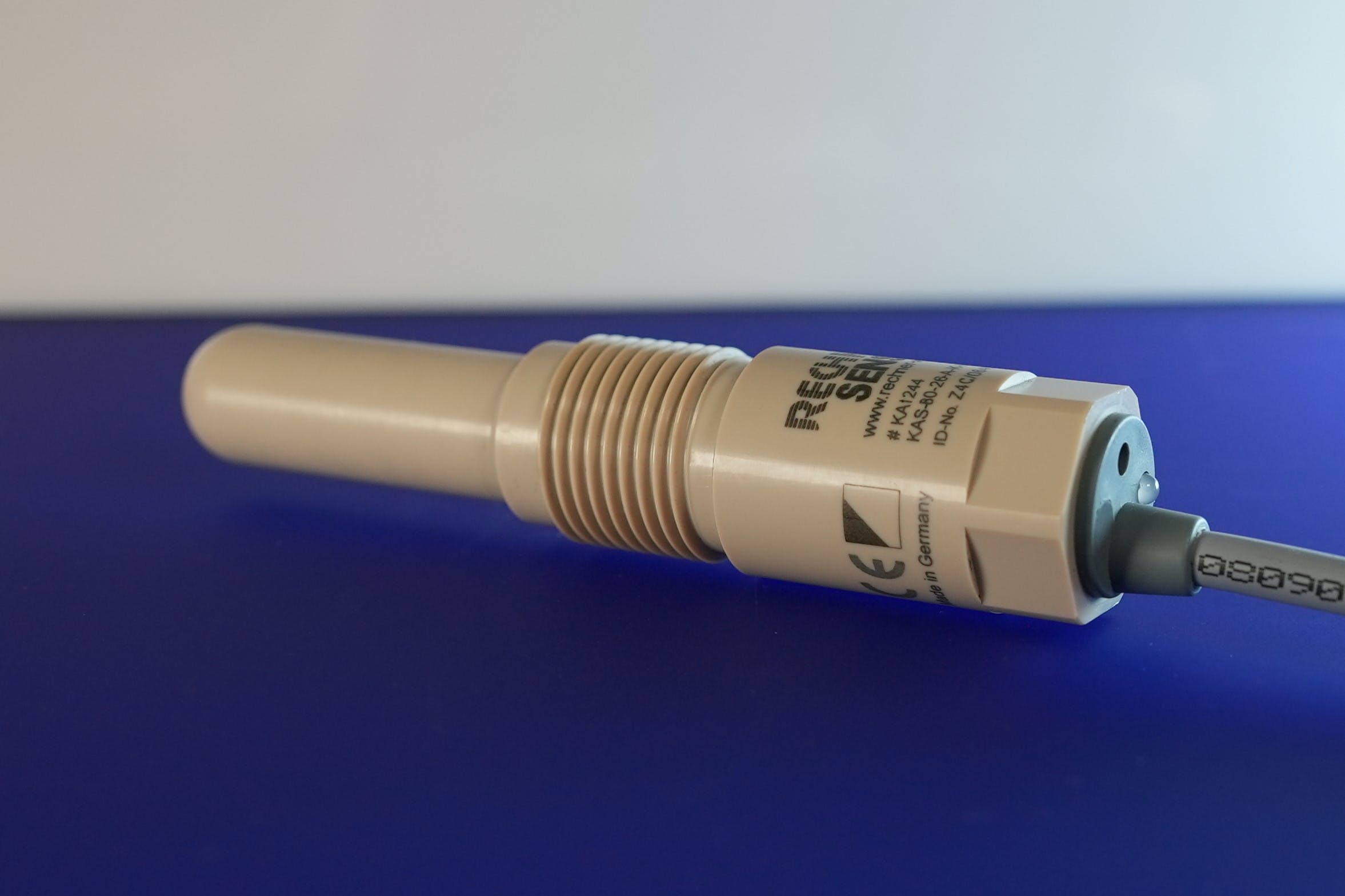

Rechner Sensor KA1244 has hygienic housing certified by the European Hygienic Engineering and Design Group with certification type EL Class I. The sensor’s Peek surface has high-quality Ra 0.4 μm for smoothness and conforms to EC 1935/2004 for traceability of the materials. This housing is also FDA 21 CFR 177.2415 compliant for use in food and pharmaceutical applications. The beveled edge body design prevents the possibility of contamination around the weld mount or varivent adapter. This allows the sensor to stay in place while the system is cleaned during product changeovers. Tri clamp mounting is also an option. The sensor is pressure rated for 10 bar, and mounting options are customizable with either horizontal or vertical mounting.
