Open-Source Industrial PC

Dec. 20, 2023
The latest updates to the Kunbus Revolution Pi industrial PC illustrate how open-source hardware and software are growing across industry.

The concept of using open-source software has become increasingly commonplace in industry, with many large software vendors incorporating use of open-source technologies as part of their software portfolio. Open-source industrial hardware devices are not quite as common.

One example of an open-source industrial automation device that’s been gaining ground over the years comes from Kunbus, a Germany-based supplier of industrial communication technologies. Kunbus has been advancing its Revolution Pi industrial PC (IPC), based on the Raspberry Pi Compute Module, since 2016. The Revolution Pi IPC is composed of open hardware and software that meet the EN61131-2 standard.

According to Kunbus, Revolution Pi (RevPi), because of its modular structure, can be supplemented by digital or analog I/O modules and its DIN rail-mountable housing allows for flexibility in installation. RevPi base modules operate at typical industrial voltages ranging from 10.7 to 28.8V dc, making them suitable for use in machines and manufacturing facilities.

RevPi base modules feature USB, Ethernet and HDMI connections. The two USB 2.0 sockets are each capable of supplying 500mA at 5V, alleviating the need for an external USB power supply when connecting parallel devices. The onboard RJ45 Ethernet connection is industrially hardened with suppressor circuits, and a micro-HDMI socket is included for connecting a monitor with sound output.

Deterministic capabilities

Kunbus highlights the fact that the RevPi is different than standard Raspberry Pi-powered computers in that a portion of the RevPi’s operating system is dedicated to deterministic control. Kunbus notes that “most PLCs in industrial settings leverage a real-time OS (RTOS) to ensure deterministic program execution through a dedicated routine, which is used to provide the robust and predictable performance necessary to avoid equipment failures and human harm.  A general-purpose PC OS is more versatile than that of a PLC because of its shareable—and usually more powerful—computing resources, which enable multi-tasking, customization and processor-intensive operations. However, this flexibility presents a greater risk of OS disruption if one or more tasks becomes corrupted or overloads the processor, potentially leading to delays, instability or a complete crash.”

According to Kunbus, RevPi uses a split OS, providing the determinism of an RTOS, along with the versatility of a standard OS. As a result, RevPi can be developed into an industrially viable small control system, a large scale IIoT (industrial Internet of Things) platform or elements of both simultaneously. Its scheduler—which controls the execution of tasks by the operating system—can be configured to avoid networking or software resource delays, ensuring the best performance for real-time control and other critical or time-sensitive tasks.

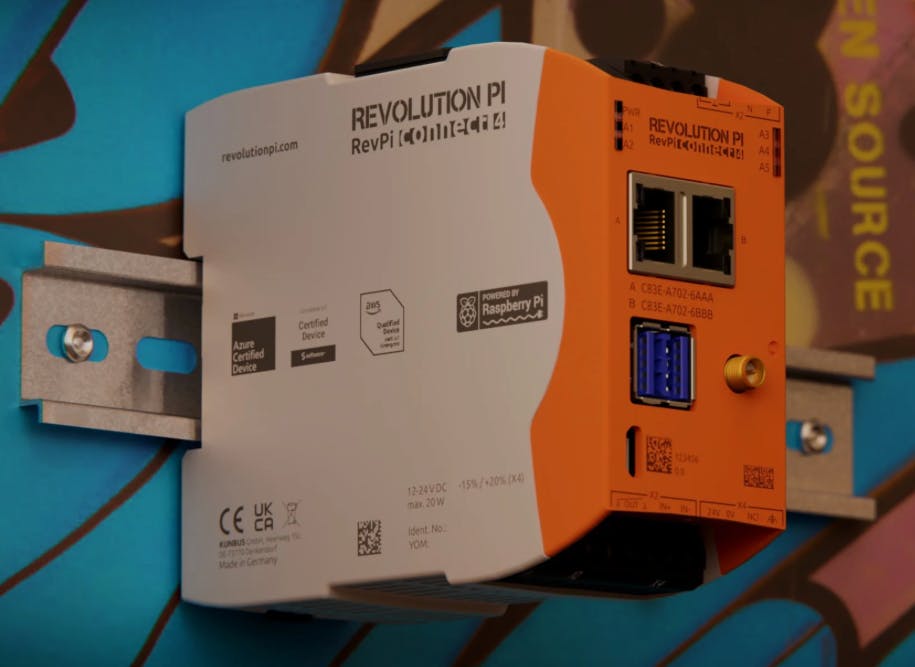

RevPi also features support for third-party software, such as Codesys’s Soft PLC. The latest version—RevPi Connect 4—was released in August 2023, adding a Broadcom BCM2711 processor and support for WLAN and Bluetooth communications. This most recent lineup addition also comes with a battery-buffered real-time clock and easier I/O expansion with a plug-and-play GUI.
