Toshiba Machine Rounds Out Its THL Scara Robot Line With Addition Of Longer Arm Length Models
Oct. 24, 2013

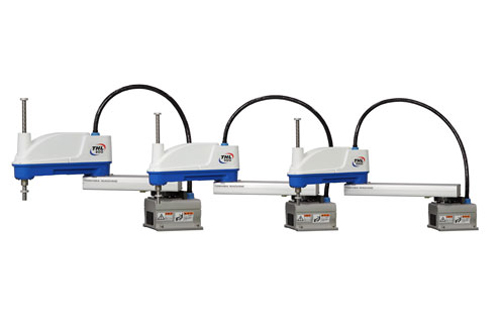

TM Robotics (Americas) Inc. now markets a complete line of affordable and lightweight THL Series SCARA robots, with the addition of its extended arm length THL800, THL900 and THL1000. Offering Toshiba Machine’s longest arm lengths, 800mm, 900mm and 1000mm respectively, these three new models efficiently move payloads up to 10kg over a long distance.
TM Robotics (Americas) Inc. now markets a complete line of affordable and lightweight THL Series SCARA robots, with the addition of its extended arm length THL800, THL900 and THL1000. Offering Toshiba Machine’s longest arm lengths, 800mm, 900mm and 1000mm respectively, these three new models efficiently move payloads up to 10kg over a long distance.
Toshiba Machine’s complete THL Series SCARA robot line also includes the THL300 and THL400, featuring the maximum payload capacity in their class, as well as the THL500, THL600 and THL700.
All THL Series robots are equipped with lightweight die cast aluminum arms, with working envelopes of 4 axes and 360º Z-axis rotation. THL robots also feature less complex, easy-to-maintain gearboxes and motors. The THL’s high RPM motor results in the highest speeds in its class compared to other SCARA robots of similar size. For more information about Toshiba Machine System Robotics, click here.
Low-cost and lightweight THL Series SCARA Robots are ideal for price-conscious end-users, and system integrators looking to incorporate automation. The THL800, THL900 and THL1000 are ideal for the assembly of medical devices, food packaging, pharmaceutical processing, and semiconductor and electronics.
Toshiba Machine’s TSL3000 Controller was developed exclusively for the THL Series. It includes USB compatibility as standard, while Field Bus is available as an option. Storage capacity totals are approximately 6400 point + 12800 steps. The programming language is SCOL (similar to BASIC).
>>For more information on this product, click here
