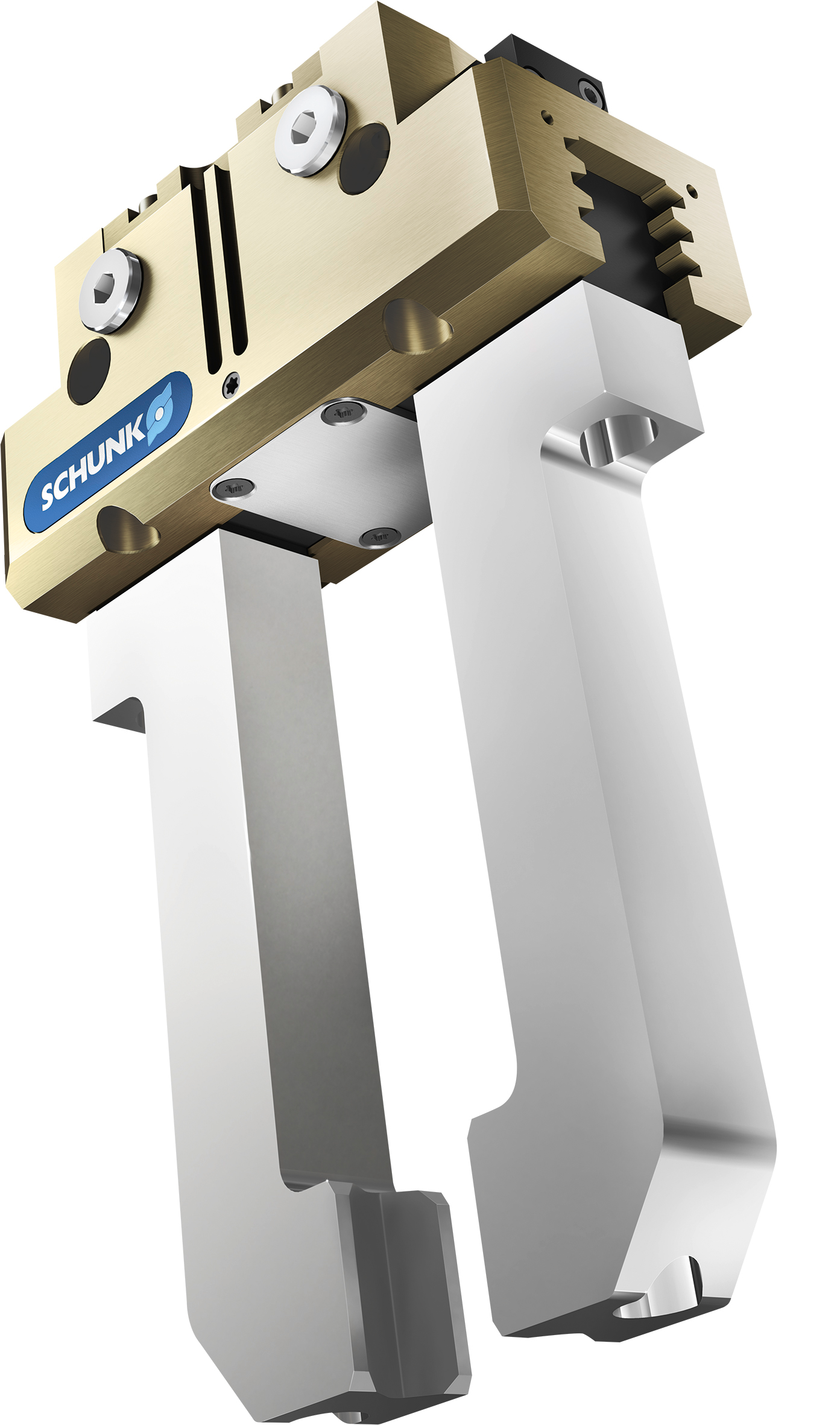

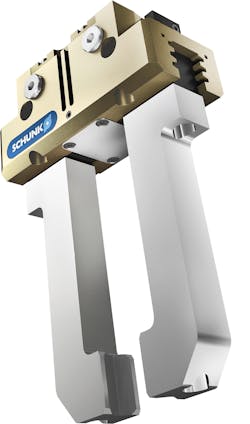

Pneumatically Powered Universal Gripper

The PGN-Plus-P from Schunk features enlarged supporting dimensions between the six load-bearing shoulders of the multi-tooth guidance that allow higher moment capacity that can accommodate longer fingers and greater loads.

Aw 95780 1603np Schunk

Permanent lubrication is provided through continuous lubrication pockets in the guidance. For short strokes in particular, the principle of minimum quantity lubrication ensures quick and even distribution of the lubricant, making the gripper nearly maintenance-free and considerably extends its service life. The gripper also has an enlarged drive piston area which increases grip force so that higher workpiece weights can be handled. In addition to the larger piston, the wedge drive mechanism has been redesigned for lower friction and greater surface area which transmits more energy to the jaws creating even more grip force than previous generations. The unit is suitable for use in areas with high temperatures, contamination, and aggressive media, as well as for cleanrooms. On request, the module is available with spring safety, mechanical gripping force maintenance, compensation units for compensating angular misalignment, dust-proof versions, or as special high-precision versions. The unit is available in sizes 50 to 125.

>>For more information on this product, click here
www.schunk.com
800.772.4865
