Siemens: Ultrasonic Level Controllers With Enhanced Setup Wizards

Enhancements to the MultiRanger 200 and HydroRanger 200 ultrasonic controllers include faster commissioning with an improved HMI and graphical Quick Start Wizards.
Related To:
Oct. 9, 2015

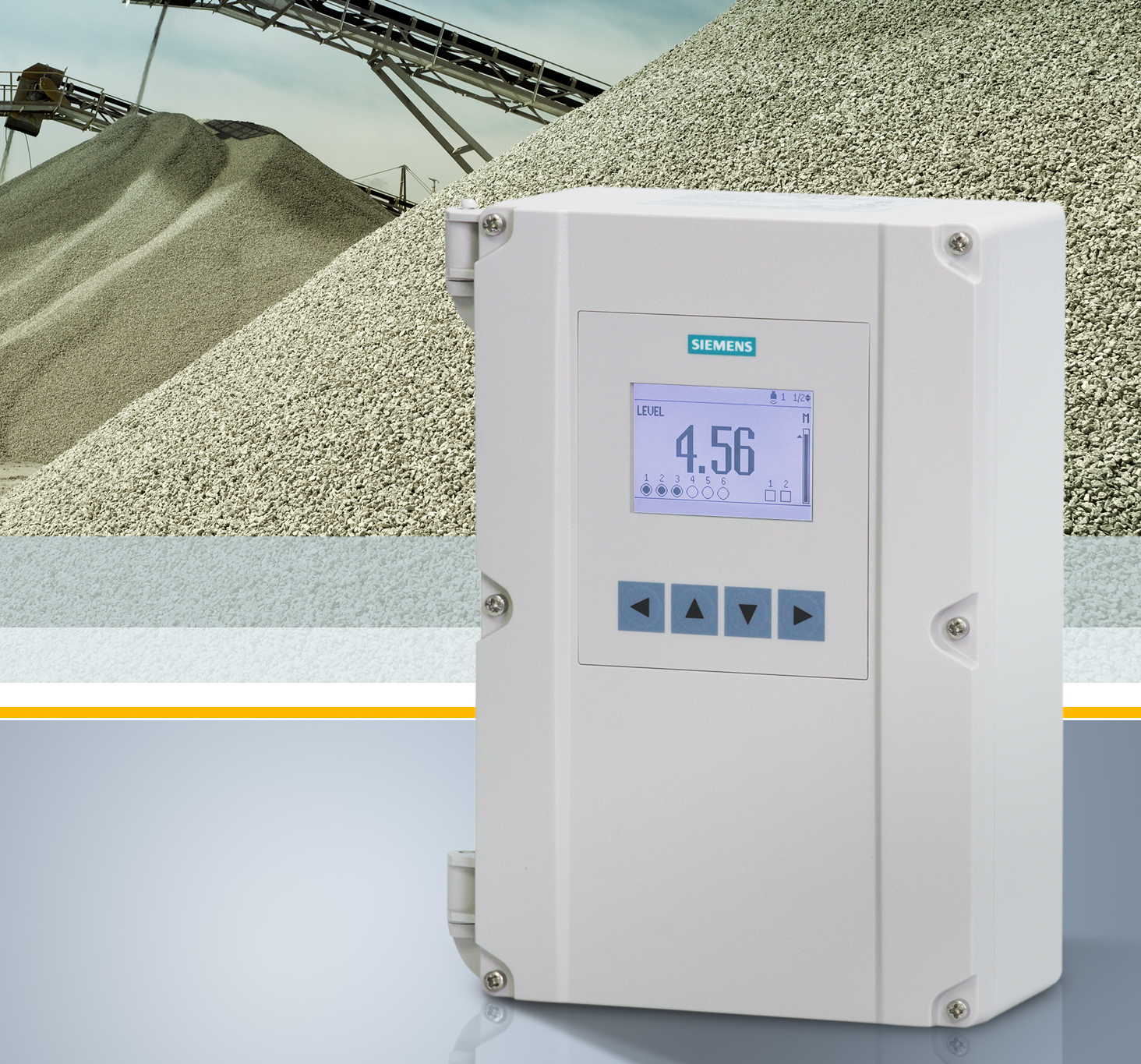

Aw 88511 1510np Siemens

Other enhancements include a redesigned enclosure with removable terminal blocks and wider communications options, including Profibus DPV1 industrial protocol. The units are suitable for measurement in a wide range of industrial applications including water/wastewater monitoring and pumping, inventory management, truck load-outs, and open channel monitoring. The controllers provide high performance measurement of level, flow, differential level, and volume conversion, with additional alarm and pump control functions. The company's Sonic Intelligence signal processing technology differentiates between true and false echoes from obstructions or electrical noise, giving users repeatable, fast, and reliable measurements. Range is 0.3 to 15 m (1 to 50 ft), transducer and material dependent, and rated accuracy is 6 mm (0.24 inches) or 0.25% of maximum range (whichever is greater).

>>For more information on this product, click here
Siemens Industry
www.usa.siemens.com/industry/us/en/
800.241.4453
