    Low-cost Enclosure “Breakthroughs”

    April 1, 2011
    A die-cast aluminum enclosure is designed to provide superior EMI/RFI protection and an IP67/NEMA 4X waterproof seal for as little as half the cost of the leading competing product.
    Aw 667 1104np31

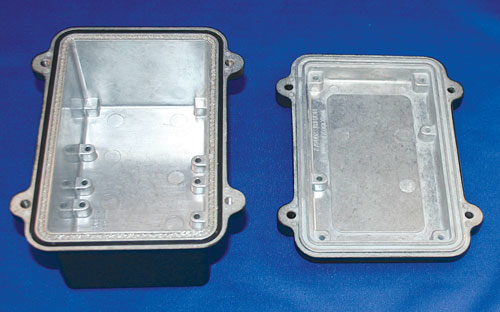

    The ANS Series EMI/RFI waterproof enclosure has a unique double-channel sealing system that enables breakthroughs in shielding, water tightness and price, says the vendor. Unlike competing enclosures with an EMI/RFI seal using metal-to-metal contact in part of the box lid, the ANS Series uses a continuous EMI/RFI gasket around the entire perimeter of the box. A second gasket, made of one-piece silicone, is designed to reliably seal out dust and moisture. The ANS Series enclosure is made from #ADC-12 aluminum using thick wall (0.098 inch, 2.5 mm) construction that provides strength and rigidity, yet is lighter weight and lower cost than stainless steel enclosures. The ANS Series is available in 18 sizes ranging from 2.83x2.64x1.53 inches to 9.45x6.30x3.35 inches.

    Bud Industries Inc.
    www.budind.com
    440.946.3200
