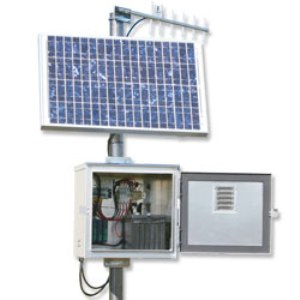

Solar Kits for Remote Monitoring Devices
Use with our wireless Zlinx Radio Modems & I/O products -- wired uses too!!
Convenient
B&B Electronicsâ EZ Solar Kits provide convenient highly reliable power to your most remote applications. Easy to install, our kits are pre-configured to minimize purchasing and specification needs. These kits eliminate the need for conduit, cables, and the necessary infrastructure required in grid power remote applications. Custom options are available.
Easy to set up
Our Solar Power Kits are designed for quick and easy installation. EZ Solar Kits are built with our customers in mind allowing you to monitor and control processes or equipment without the expense of power infrastructure in any location across the globe.
Reliable operation
Kits include pre-wired NEMA 3R weather proof enclosure with charge controller and protection circuitry. Carefully constructed from quality components and built to withstand harsh weather conditions. The enclosure also allows extra space to mount your wireless and sensor equipment. Provides reliable power year round â anytime, any location.
âąÂ Reliable power year round
âąÂ Pre-wired with specially matched components
âąÂ Pre-assembled, ready to install
âąÂ Built to withstand harsh weather conditions
âąÂ Short circuit and surge protection pre-installed
âąÂ Ready for wireless asset monitoring applications
Applications
âąÂ Remote wireless tank/ well level monitoring
âąÂ Remote irrigation monitoring and pump station control
âąÂ Telecommunication equipment/signal repeaters
âąÂ Navigation systems/traffic monitoring
âąÂ Video surveillance
âąÂ Seismic monitoring
âąÂ River and ground water level monitoring
Specifications
Solar Panel
âąÂ Class 1, Div 2 approved
âąÂ Efficiency > 90%
âąÂ 25-year warranty
Battery
âąÂ 12V, non-spill, deep-cycle gel batteries
âąÂ Valve regulated sealed lead acid (VRLA), maintenance free type
âąÂ Operating temperature: -40 to 72 °C
âąÂ 1-year warranty
Charge Controller
âąÂ Class 1, Div 2, Groups A,B,C,D
âąÂ 12V rating
    âąÂ Regulation Voltage â 14.1V
    âąÂ Load disconnect â 11.5V
    âąÂ LVD reconnect â 12.6V
âąÂ Temperature compensation: -28 mV/°C
âąÂ Operating temperature: -40 to 85°C
Enclosure
âąÂ NEMA 3R weatherproof
âąÂ Short circuit protection included
âąÂ 5 kA surge protection lightning arrestor
B&B Electronics - www.bb-elec.com Â
