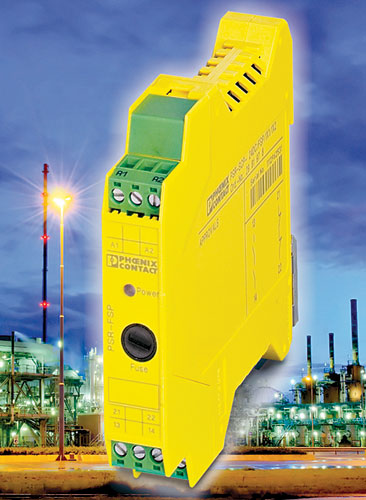

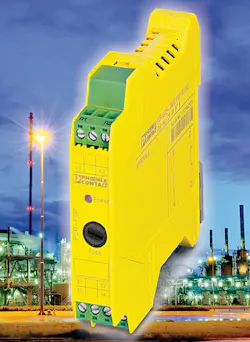

SIL 3 Process Safety Relay

Specifically designed to operate with fail-safe controls in process applications, the PSR-FSP process safety relay can be used in applications up to a Safety Integrity Level (SIL) 3 requirement, according to IEC 61508.

Dec 1st, 2010

Aw 1144 1012 Phnx

The PSR-FSP is compatible with “test pulses” that occur on safe PLC/DCS outputs. Inrush requirement is limited for safe PLC/DCS output compatibility, and it has a built-in fuse for the safe output contact. Just 17.5mm wide, the relay features a normally open (NO) redundant safety output and a normally closed status contact that can be externally connected. The maximum switched current of the NO contact is 5A. The device also has an externally accessible 5x20mm standard fuse to protect the load contact.

Phoenix Contact Inc.
www.phoenixcontact.com
800.322.3225
