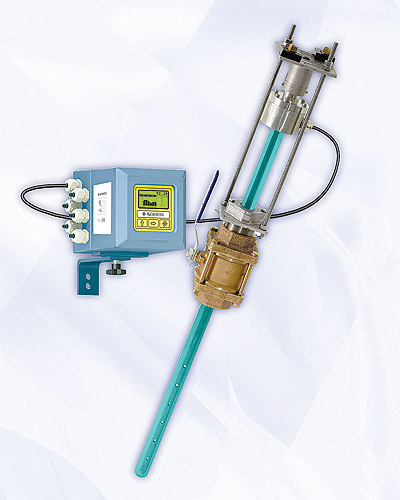

The FPI Mag (Full Profile Insertion) Electromagnetic Flow Meter is the successor to the vendor’s Multi-Mag Insertion Flow Meter, which is said to be the industry’s only multi-electrode hot tap full profile insertion flowmeter delivering a continuous total flow profile similar to a full-bore mag meter.
The enhanced design of the FPI Mag features additional sensing
electrodes for increased sensitivity and is packaged in a heavy-duty 316
stainless steel sensor body for maximum structural integrity. The
sensor is coated with a NSF certified 3M fusion-bonded epoxy coating for
operational longevity. Unlike other insertion mag meters, the FPI Mag
Flow Meter’s multi-electrode sensor design compensates for variable flow
profiles, including swirl, turbulence and low-flow conditions, says the
vendor. The FPI Mag is available for line sizes from 4 to 138 inches
and features accuracy of ±1% of reading ± 0.03 ft./sec zero stability
from 0.3 to 20 ft/s velocity range.McCrometer Inc.www.mccrometer.com800.220.2279
