Miniature Circuit Breakers

Aug. 10, 2010

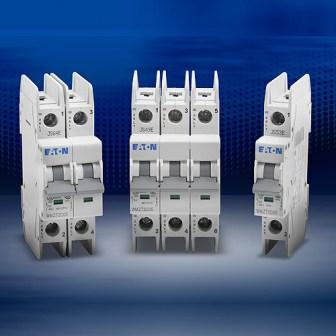

The Eaton WMZT series miniature circuit breakers have been added to AutomationDirect's product offering of circuit protection devices.

The single-pole, two-pole and triple-pole devices, available in sizes from 0.5 - 40 Amps, offer optimum and efficient protection for branch and control circuits. The series' current-limiting design provides fast short circuit interruption, within one half cycle of the fault, which reduces circuit-damaging let-through energy.

WMZT circuit breakers are available with C and D curve thermal magnetic overcurrent protection characteristics. C-curve devices are suitable for applications where medium levels of inrush current are expected, such as small transformers, lighting, pilot devices and control circuits. D-curve devices provide protection from nuisance tripping where high levels of inrush current are expected, such as motors, transformers and power supplies. The series is also suitable for reverse-feed applications.

The series is DIN-rail mountable and features a trip-free design so the breaker cannot be defeated by holding the handle in the "ON" position.

A selection of field-mountable accessories is also available, including auxiliary and alarm switches, shunt trip, lockout attachments and bus bar systems.

Prices begin at $16.50 for the 0.5 Amp breaker.

AutomationDirect - www.automationdirect.com
