The Fastest Camera Link Camera

Silicon Software is introducing the world's fastest PCIe x4 frame grabber.

This content was submitted directly to this website by the supplier.

Aug 2nd, 2010

Aw 1527 1008 Basler Pr

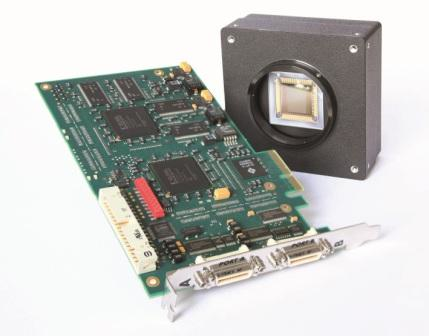

This new grabber supports the Basler A406k/kc at its full bandwidth. Basler's A406k/kc is currently the fastest Camera Link camera.

The combination of these components represents one of the most powerful systems available for industrial imaging. At the same time, it is a solution with an outstanding price/performance ratio.

The microEnable IV series supports the maximum Camera Link speeds via a PCIe x4 interface. It reaches a transfer rate of 837 megabytes per second in a 10 tap, full configuration mode at the camera's full 2320 x 1726 pixel resolution and a repetition rate of 209 frames per second.

Because the data is transmitted via a DMA channel into the host RAM, additional processing for image reconstruction is not necessary. The frame grabber is multi-board enabled and supports the use and synchronization of multiple full configuration cameras in one system. The microEnable IV AD4-CL and VD4-CL frame grabbers support both Windows and Linux operating systems in a 32 bit and a 64 bit mode respectively.

Basler Vision Technologies - www.baslerweb.com
