Compact, Integrated Motion Control

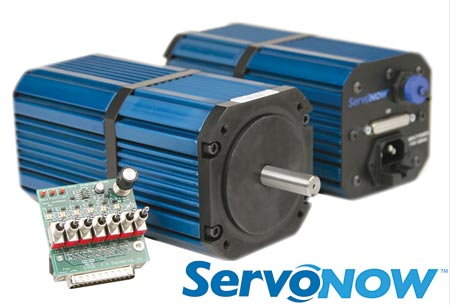

To enable specialty machine builders, OEMs and others to quickly and easily apply motion control in their applications, the ServoNOW integrated servo system incorporates a closed-loop brushless servo motor with built-in driver, controller, feedback device and 110/220VAC universal power supply in a single compact package.

Jul 5th, 2010

Aw 1634 1007 Bison

The system can be programmed and monitored using a standard PC through a built-in USB port. Up to 32 index motion profiles in velocity or positioning are integrated with its QuickLaunch software control program. ServoNOW features include four programmable digital inputs and outputs, analog I/O (0 to 10VDC or 4 to 20MA, 12 bit), and 4096 counts position resolution. The initial ServoNOW product offering includes 5 standard models made up of both high speed (6900rpm) and high torque (3600rpm) variations with peak torques up to 310 oz in (2.19 N-m).

Bison Gear & Engineering Corp.
www.BisonGear.com
800.282.4766
