HMI Graphics Made Easy

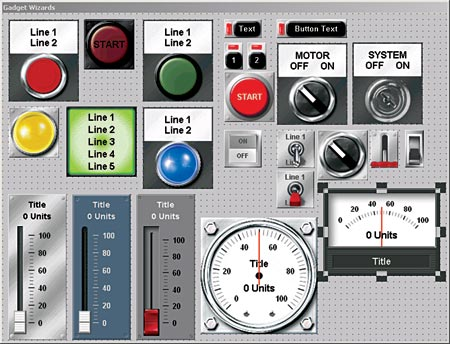

Gadget Wizards 1.1 is a collection of buttons, lights, switches, sliders, meters, fills and other graphic objects that plug into Wonderware InTouch HMI software.

May 3rd, 2010

Aw 1832 1005 Sftwre

With the availability of a wide variety of settings that allow customization of each object, InTouch application developers are able to save time by creating thousands of unique graphics combinations quickly. In addition, Gadget Wizards can simply plug into the InTouch WindowMaker development environment and easily animate existing InTouch tags. The new graphics software application works with panels made by Wonderware hardware partners that support InTouch Compact Edition 10.1 or higher. Gadget Wizards also is compatible with InTouch 8.0 or higher. A free trial is available at www.softwaretoolbox.com/gadgetwizards.

Software Toolbox Inc.
www.softwaretoolbox.com
704.849.2773
