Circuit Breakers Save Space

A new range of circuit breakers is designed to combine the advantages of fuse terminal blocks with the benefits of thermal-magnetic circuit breakers.

Apr 6th, 2010

Aw 1955 1004 Phnx

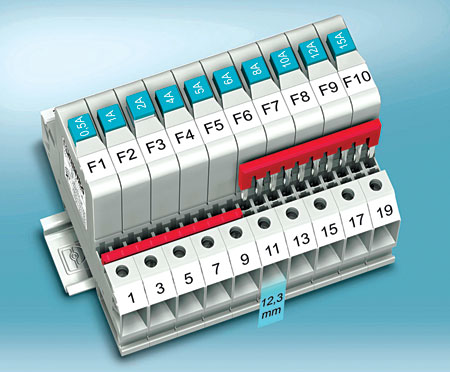

The UT 6-TMC M series is a resettable, single-pole circuit breaker with screw connection. Tripped circuit breakers on the TMC are clearly indicated and can be re-set with the press of a button. The series is available in 11 graded steps for nominal currents from 0.5 to 16A. Two bridge shafts simplify distribution. Measuring just 12.3mm wide, UT 6-TMC M circuit breakers occupy 30 percent less space than conventional 17.5-mm circuit breakers.

Phoenix Contact Inc.
www.phoenixcontact.com
800.322.3225
