Eliminate Light Screen Dead Zones

The EZ-Screen family of safety light screens has been expanded to include low-profile models designed to pair a space-saving footprint with reliable performance.

Aw 2490 0910 Bannr

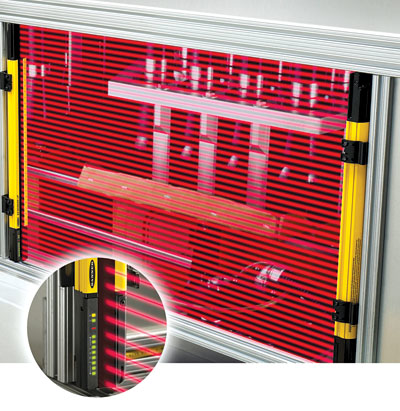

The first and last beams of the EZ-Screen Low Profile (LP) are positioned at the ends of the light screen, delivering continuous detection along the entire light screen length and eliminating the dead zones found on traditional safety light curtains. The EZ-Screen LP is offered in 14mm or 25mm resolution models, with defined areas from 270mm to 1810mm and detection ranges up to 7m. The interconnection of cascade sensors has also been optimized with no big cable loops, allowing up to four sensor pairs and an Emergency Stop or interlocking guard switches to be connected at the end sensor.

Banner Engineering Corp.
www.bannerengineering.com
888.373.6767
