DAQ Devices Up the Ante

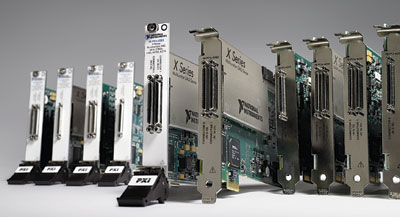

X Series multifunction data acquisition (DAQ) devices for the vendor’s PCI Express and PXI Express systems provide enhancements to analog I/O, digital I/O, onboard counters and multi-device synchronization.

Oct 2nd, 2009
Aw 2505 0910 Ni
The devices integrate native PCI Express support for high-throughput data transfer, advanced timing and synchronization technology for precise measurement and control, and the ability to perform advanced processing and analysis on multicore systems. They include up to 32 analog inputs (AI), four analog outputs (AO), 48 digital I/O lines and four counters, and range from 250 kS/s multiplexed AI to 2 MS/s simultaneous sampling AI. Total throughput can surpass 100 MB/s for a single device.

National Instruments Inc.
www.ni.com
888.280.7645
