Kits Protect Motor Bearings

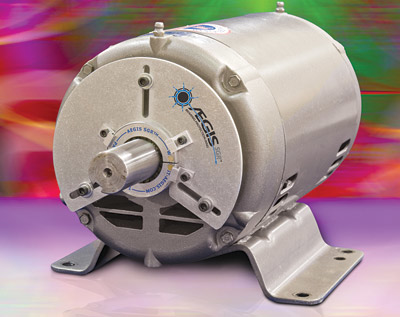

Two Aegis SGR Split-Ring Bearing Protection Kits—one for NEMA motors and one for IEC motors—were developed for easy field installation without disassembly of coupled equipment.

Aug 5th, 2009

Aw 2703 0908 Aegis

The Split-Ring kits are designed to provide clearance for shaft shoulders, slingers, and other end-bell protrusions while protecting bearings from electrical damage caused by circulating or shaft currents. Kits include the new split-ring version of the SGR Bearing Protection Ring. The ring prevents bearing damage by safely channeling shaft currents to ground. Kits also include a sturdy aluminum mounting plate and all mounting hardware. The SGR Bearing Protection Ring dramatically extends motor life and prevents bearing noise, downtime and costly motor repairs/replacements, says the vendor. Ordered by motor frame size, standard-size kits fit NEMA-frame motors with shaft diameters from 0.625-in. to 3.375-in. and IEC-frame motors with shaft diameters from 19mm to 95mm.

Electro Static Technology
www.est-aegis.com
866.738.1857
