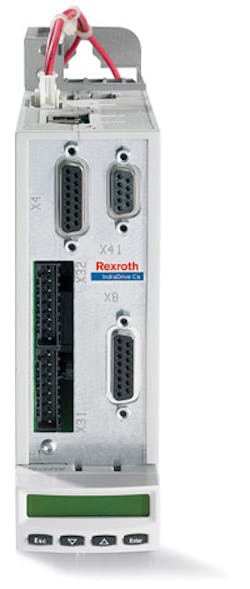

Flexible, Compact Servo Drive

The IndraDrive Cs low-power servo drive features a compact space-saving design and open support of multiple Ethernet-based communication buses.

Jan 11th, 2009

Aw 3278 0901 Bosch

The IndraDrive Cs supports SERCOS III, ProfiNet, EtherNet/IP and EtherCat communications. Designed for flexibility, the drive has a universal multi-encoder interface supporting Hiperface, EnDat 2.1 and 2.2, 1Vss, 5V TTL, and MSM servo motors. The Cs can also be equipped with a drive-based PLC, integrating motion and logic according to IEC 61131-3 standards, as well as Safety On Board capability for certifiable drive-based machine safety. Available in models ranging from 50W up to 3.5kW, the IndraDrive Cs measures 50x145x220mm for one unit, and 75x205x220mm for the larger unit. Maximum current ranges from 3A up to 28A, with a high overload range.

Bosch Rexroth Corp.
www.boschrexroth-us.com
630.654.0170, Ext. 115
