Slides Deliver Fast Positioning

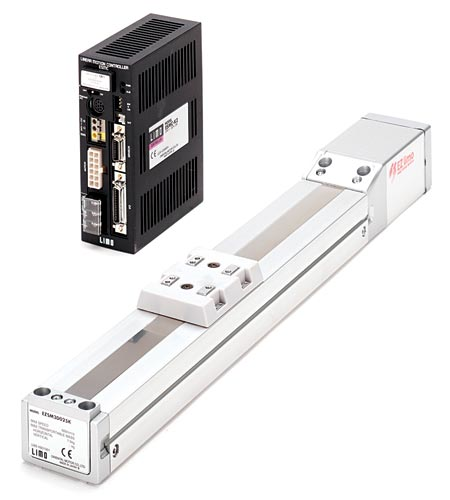

The EZ Limo EZSII motorized linear slide series uses the aStep step motor to achieve high positioning response without any missteps, says the vendor.

Dec 1st, 2008

Aw 3368 0812 Orient

The compact, RoHS-compliant series is designed to deliver fast positioning with a wide transportable load capability. The series consists of three sizes, the EZS3, EZS4 and EZS6. The EZS3 and EZS4 range from 1.97-in. (50mm) to 27.56-in. (700mm) strokes in 1.97-in. (50mm) increments. The EZS6 is available in a wider range of strokes from 1.97-in. (50mm) up to 33.46-in. (850mm), also in 1.97-in. (50mm) increments. The EZS6 motorized linear slide can move a maximum transportable load of up to 132 lbs (60 kg) horizontal and 66 lbs (30 kg) vertical. Maximum slide speeds reach 31.5 inches/sec (800mm/sec) with a half inch (12mm) screw lead. An EZSII slide can move a 16.5 lb (7.5 kg) load over 1.97 inches (50mm) in 0.19 seconds.

Oriental Motor USA Corp.
www.orientalmotor.com
800.418.7903
