Interface Modules Speed Wiring

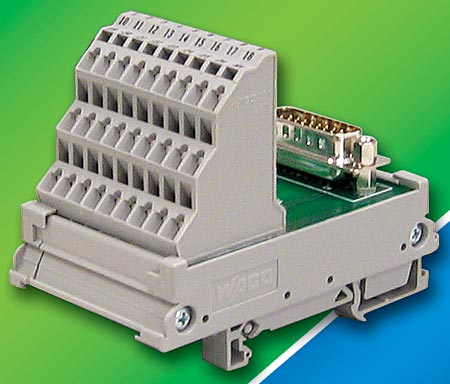

A line of 26-pin D-sub interface modules for motion control applications has been engineered to provide fast, easy wiring.

Dec 1st, 2008

Aw 3372 0812 Wago

The high-density, male interface modules have been paired with 737-109 triple-deck terminal strips to provide efficient control-level connections for electromechanical devices. The modules offer straightforward integration with 1-to-1 pin contact for proper signal transmission and distribution. Use of the 737-109 triple-deck terminal strips enable a PCB that is approximately 1/3 the width of traditional blocks. The triple stacked terminal configuration also makes determining pin-to-terminal correspondence simpler.

Wago Corp.
www.wago.com
800.346.7245
