Achieve High Temperature Resolution

June 6, 2008

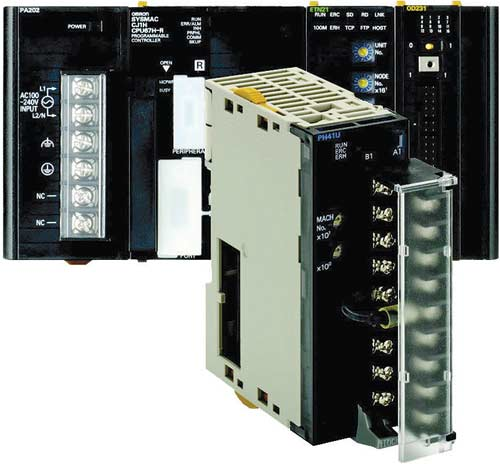

The 4-point universal analog input module CJ1W-PH41U is billed as the industry’s first PLC-based module with temperature resolution to 0.001°C.
The module accepts 28 different types of inputs, simplifying inventory control and maintenance. Conversion speeds of 5ms are possible and are set automatically based on the selected resolution to simplify set-up. The inputs are isolated to prevent unwanted current paths that can interfere with data integrity. The Present Value (PV) can be scaled in any industrial units and is automatically calculated in the module. Offset compensation is possible for adjusting to process value errors. Rate-of-change calculation can be set from 1 to 16 seconds. The module is priced at $1,099. Omron Electronics LLCwww.omron247.com866.886.6766
