Motors Offer Design Freedom

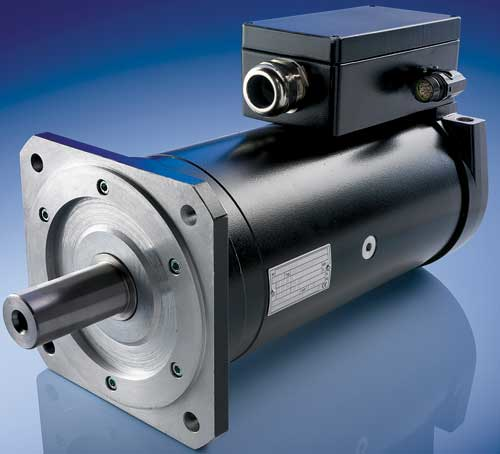

The 8KS series are liquid-cooled three-phase synchronous motors featuring high-power density with compact outer dimensions.

Aw 3805 Br 61
Integrated water cooling enables more compact sizes and prevents the machine or the switching cabinet from overheating. Doing away with energy consuming and noisy fans saves space, reduces emissions and lowers costs. The life span increases significantly because the motor parts, except for bearings, are free of wear. Intelligent connection technology for power and encoder connections using circular connectors or terminal boxes simplifies installation. The motors are available in four sizes with a rated speed of 1,100 rotations/min to 2,200 rotations/min and a maximum speed of 4,500 to 10,000 rotations/min. The rated torque is between 8.3Nm and 605Nm.

B&R Industrial Automation Corp.
