Compact Hybrid Linear Actuator

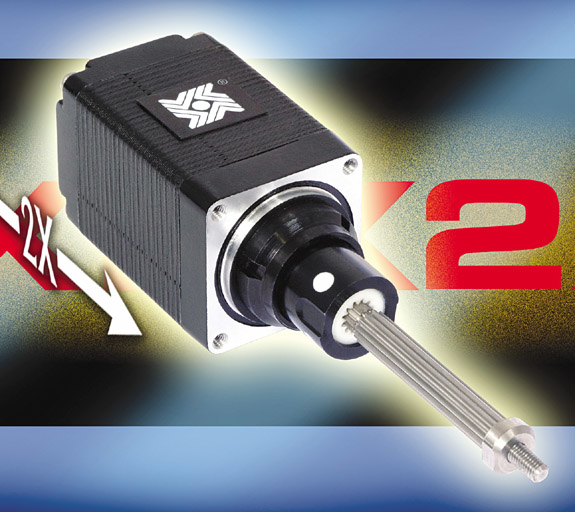

As the latest addition to the vendor’s hybrid motor line, the 28000 series double stack captive hybrid linear actuator features a compact frame size that is only 1.1-inch (28mm) square.

Aw 4020 0801 Np25

Designed for long life of several million cycles and superior performance, the size 11 linear actuator features engineering thermoplastics in the rotor drive nut and a stainless steel Acme lead screw. The 28000 series is available in resolutions ranging from 0.000125 inch (0.003175mm) per step to 0.002 inch (0.0508mm) per step and delivers thrusts of up to 30lbs. (133N) without compromising long life. The actuator is designed with the vendor’s patented integral anti-rotation mechanism. Captive linear travel ranges from 0.5 inch (12.7mm) to 2.5 inch (63.5mm).

Haydon Switch & Instrument Inc.
