Terminal Blocks Save Time, Space

Dec. 11, 2007

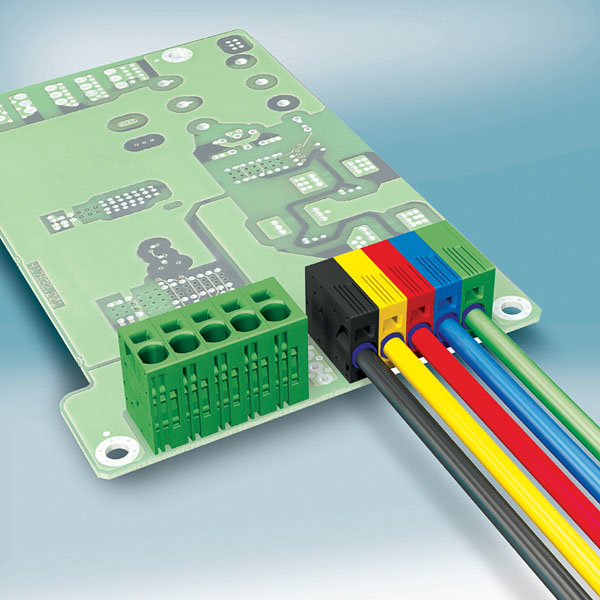

SPT 5 PCB terminal blocks are designed to provide fast wiring of conductors for power applications.

A zigzag pin design allows for an unrestricted 600 volt and 35 amp UL capability with a pitch of just 7.5mm. The SPT 5 is a fixed, one-piece printed circuit terminal block with a spring-cage wire termination design. Solid conductors and stranded conductors with ferrules can be applied without the use of tools; simply push the conductor into the spring-cage connection. For stranded wires without ferrules, a screwdriver is placed into the actuation shaft to open the contact termination point. The SPT 5’s stackable design enables any combination of position sizes. Both right angle and vertical PCB-mount versions are available


Phoenix Contact USA

www.phoenixcon.com

800.322.3225
