Compact Integrated Motion Controller

Dec. 11, 2007

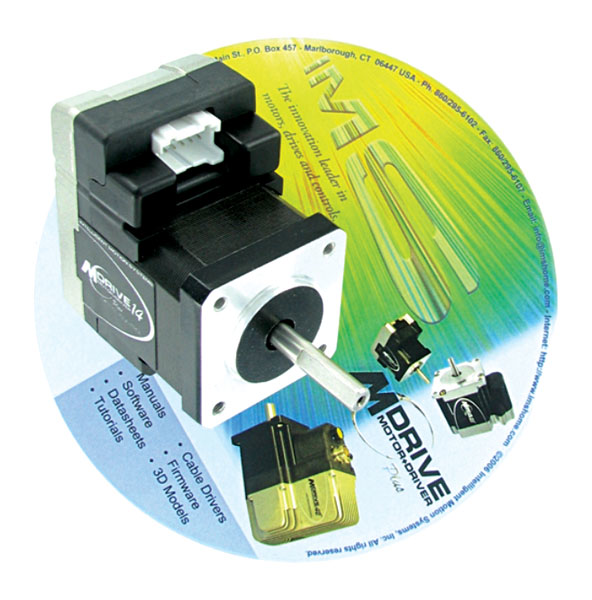

The MDrive14Plus Motion Control is the smallest member of the MDrivePlus product line, which combines motor, driver, controller and encoder.

The all-in-one motion control solution uses a NEMA size 14 brushless 1.8° motor and measures a mere 1.9x1.4x2.0in. (48x36x52mm). The MDrive14Plus includes a programmable controller and full featured easy-to-program instruction set. Communication is over either RS-422/485 or optional CANopen. It includes up to eight +5 to +24 volt general purpose I/O lines, one 10 bit analog input, 0 to 5MHz step clock rate, and 20 microstep resolutions up to 51,200 steps per revolution. Optional closed loop control adds: stall detection, position maintenance and find index mark. Operating range is –40° to +85°C.

Intelligent Motion Systems Inc.
www.imshome.com
860.295.6102
