Enhanced Motor Protection System

July 9, 2007

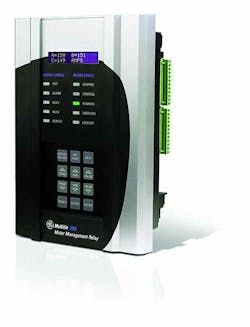

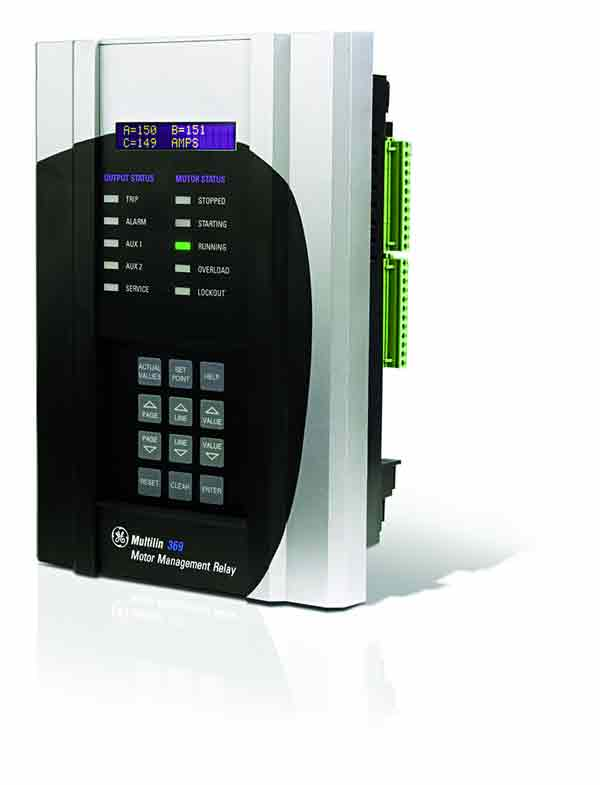

Designed for medium voltage motors, the enhanced 369 Motor Protection System offers simple set-up configuration, an improved front panel, advanced graphical diagnostics, comprehensive communications and complete traceability of all setting changes.
The need to manually program hundreds of individual protection settings has been eliminated with the six-step Motor Settings Auto-Configurator. By using motor nameplate data, current and voltage sensing parameters, motor starting and application information, the Motor Settings Auto-Configurator automatically generates a complete settings file. A new front panel design including LED indicators for conditions such as, Stopped, Started, Running, Overload and Trip provides quick, visual indication of motor status. The 369 Motor Heath Report’s graphs and tables allow operators to “see” how their motors are operating with motor start/stop history, trip details, learned acceleration time and starting current.

GE Multilin

www.GEMultilin.com905.201.2467
