Bipolar Chopper Drive

Feb. 1, 2006

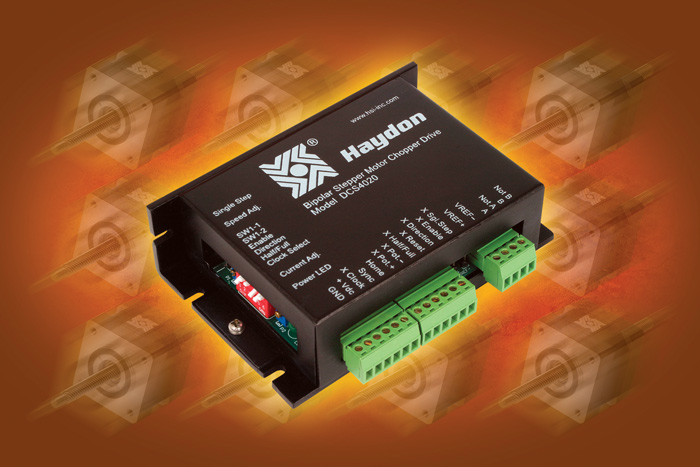

As the latest in the vendor’s drive family of products, the DCS4020 bipolar chopper drive is designed for easy set up and use.

Just connect a single power supply and a motor and the drive is ready to run. Motor current is set using an on-board potentiometer. No external current setting resistors are required. The DCS4020 provides all basic motor controls including full- or half-stepping of bipolar steppers, directional control and output enable control. An oscillator circuit is standard on the drive with an on-board speed control potentiometer. External input/output signals allow complete remote control of all drive functions. All electrical connections have removable plugs incorporating screw type terminals.
