High-Performance CPU

Sept. 1, 2004

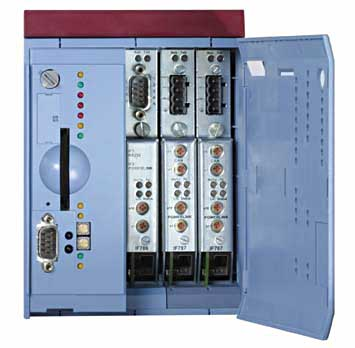

The CP382 System 2005 CPU offers full PC performance in combination with classic control technology. PLC functionality with 200 microsecond task classes, flexible function modules such as PLC Open motion library, Soft CNC, WebServer and VNC Server are all integrated into one platform.

A 500 MHz Pentium III processor, 64 MB DRAM, exchangeable Compact Flash or 10/100 Mbps Ethernet are among the CP382 features. Insertable field bus modules allow custom solutions for differing applications. Centralized or decentralized I/O modules with precise, intelligent and high-speed individual channels, as well as industry specific technology components, expand the processing power of the system.
