Parallel-link robot designed to maximize speed and flexibility for assembly, small part handling and picking applications.

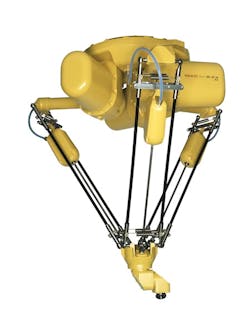

Fanuc Robotics America Inc. has introduced the M-3iA robot--a larger version of the company's M-1iA robot introduced last year. Available in a four- or six-axis model, the M-3iA offers the same unique parallel-link structure, is lightweight and portable, and accommodates payloads up to 6kg. Its work envelope is a sizable 1350mm x 500mm.The M-3iA six-axis model has a three-axis, patent-pending wrist for complex assembly tasks. The flexibility offered by the three-axis wrist enables the robot to pick up and insert parts at simple or compound angles, and twist parts into place, similar to the flexibility offered by a manual operator. A four-axis M-3iA has a single-axis wrist for simple assembly and high-speed picking operations, offering speeds up to 4000 degrees per second. In addition, a hollow wrist allows hoses and cables to be routed internally, which minimizes wear and tear on the tooling cables. Other features include:
Food option with food-grade grease features a special coating to handle acid and alkaline disinfectants, and low-pressure rinsing.
Ability to work with primary (unpackaged) or secondary (packaged) food products.
IP67 rating for the entire robot means the robot is waterproof and can withstand harsh environments, including dust and oil mist.
