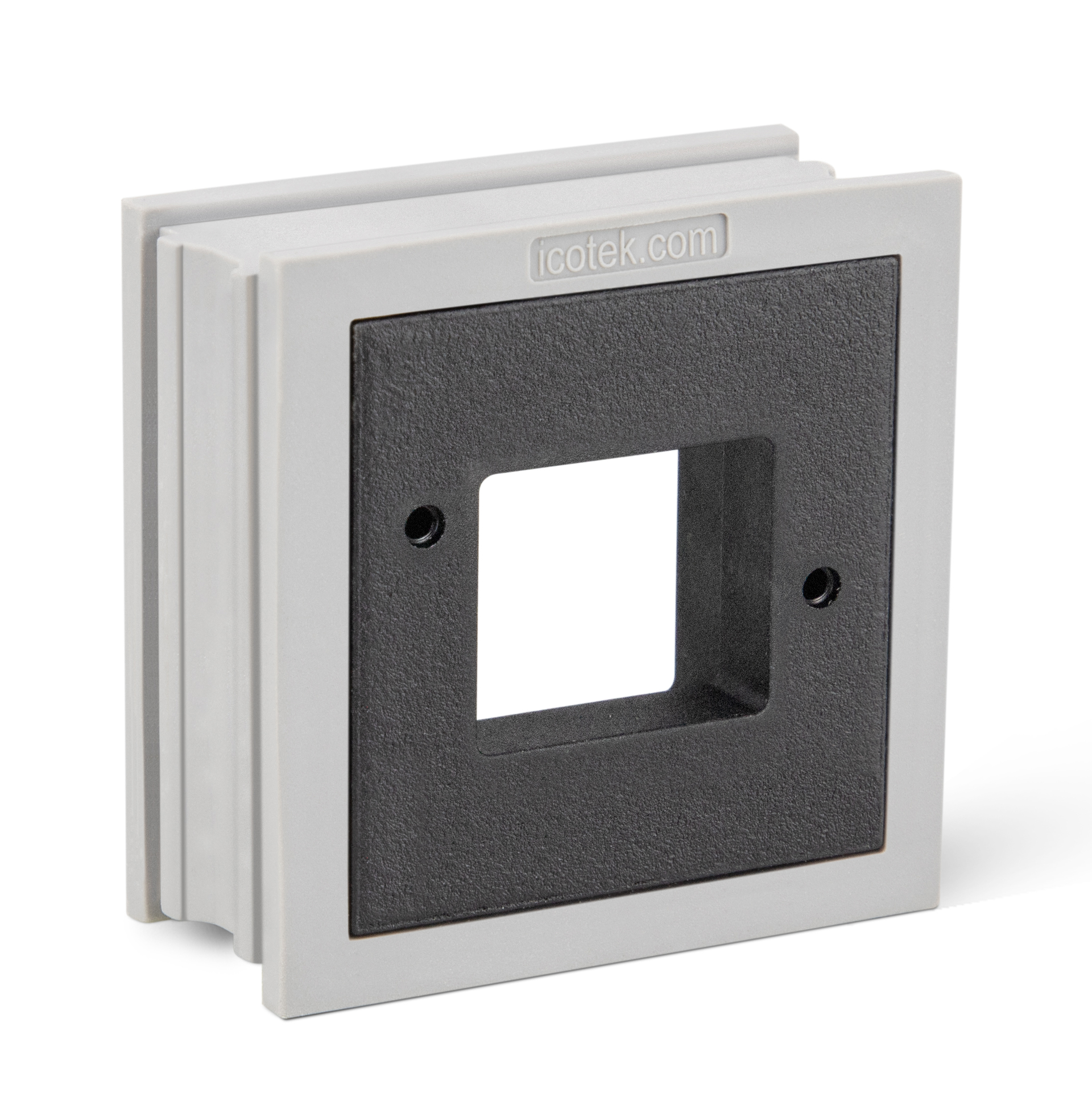

The new AT-PP adapter grommet is based on a KT large cable grommet. A polyamide body is integrated in this elastomer grommet. Thanks to the screw-on housing, all modules "compact" PushPull module systems can be routed into the grommet. Using the AT-PP adapter grommet, pre-assembled cables and Push Pull termination points can be routed through the same knock-out. This reduces the need for multiple knock-outs reducing labor time and costs as well as space on the side of a machine.
The AT-PP has protection class IP65.
The AT-K-M adapter grommet is based on a KT small cable grommet. A nickel-plated brass body is integrated in this grommet. The AT-K-M is available with internal threads M5 x 0.5, M8 x 1.0, M12 x 1.0, M12 x 1.5, M14 x 1.0 and M16 x 1.5. By using the AT-K-M adapter grommet, e.g. pneumatic bulkhead plug connections M 12x1.0, M 14x 1.0, 1/8 "and ¼", numerous round plug connectors and pressure compensation elements are integrated directly into the cable entry. The adapter grommet is compatible with all icotek cable entry systems where our traditional KT grommets can be used.
The AT-K-M has a protection class up to IP66 depending on the type of cable entry used.
All previous Imas-Connect adapter grommets fit into the KEL systems as well as the Quick systems from icotek.
