Electronic Pressure Switch

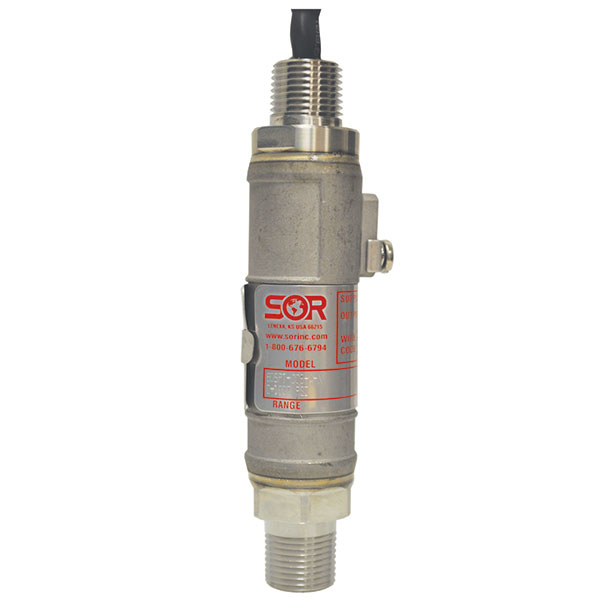

The 805QS electronic pressure switch is loop-powered and suitable for hazardous environments where space is limited.

Feb 15th, 2013

Aw 14686 Sor Ps 805 Qslr

Switch set points and supplemental continuous output zero and span points are field adjustable via an optional calibration kit. Its window-type operation closes when the pressure is between the minimum and maximum set points and will open when the pressure is outside of this range.

Sor- http://www.sorinc.com
