Sensorex: Conductivity Sensor

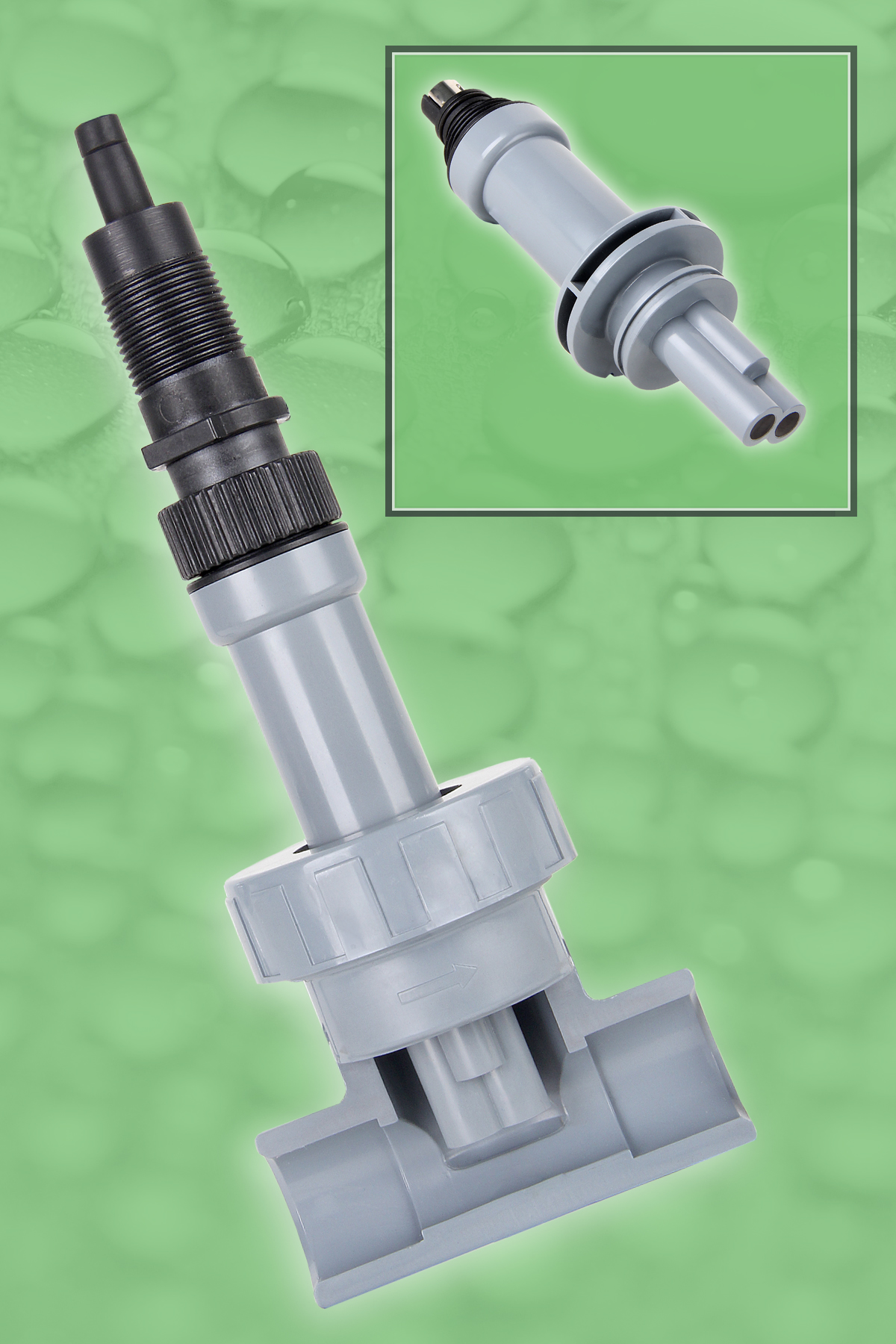

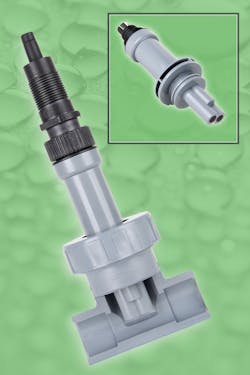

Part of the modular S8000 industrial platform, the CS8000TC conductivity delivers accurate conductivity measurement for cooling tower monitoring and other processing environments.

Aug 10th, 2014

Aw 26386 1408np Sensorex 0

The sensor integrates easily into in-line systems. Its keyed flange facilitates sensor orientation. A detachable cable assembly eliminates the need to pull cable through a conduit and sensors can be removed without tools for cleaning and calibration. The sensor's conductivity cell constant is k=1.0 ±10% for a wide measurement range within its temperature/pressure of 60 °C/100 psig. Temperature compensation is included with a choice of four sensor types. 10K, 30K NTC, Pt100 and Pt1000 RTD options enable matching to existing conductivity transmitter or controllers. The S8000 series modular platform saves users time and money by configuring a custom system that can grow and change with process needs. The platform includes pH, ORP (Redox) and conductivity electrodes, a choice of mounting hardware, and a variety of electronics options including unity gain pre-amplifiers and blind 4 to 20 mA transmitters. If monitoring needs change, users simply update the applicable module without replacing the whole system and only need to stock one sensor for a range of installation considerations.

>>For more information on this product, click here
http://www.sensorex.com/products/more/cs8000_conductivity_sensors

Sensorex
www.sensorex.com
714.895.4344
