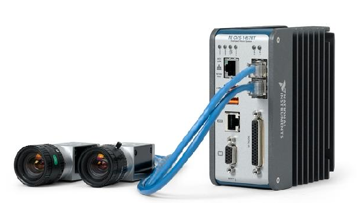

NI: Rugged Compact Vision System for USB3 Vision Cameras

NI (Nasdaq: NATI), the provider of solutions that enable engineers and scientists to solve the world’s greatest engineering challenges, announced a compact solution for high-speed vision applications.

This content was submitted directly to this website by the supplier.

Oct 8th, 2014
Aw 27533 Screen Shot 2014 10 07 At 3 13 49 Pm

NI (Nasdaq: NATI), the provider of solutions that enable engineers and scientists to solve the world’s greatest engineering challenges, announced a compact solution for high-speed vision applications. The NI CVS-1459RT is a small, rugged vision system with a quad-core Intel Atom processor and two dedicated USB 3.0 ports for USB3 Vision cameras.

“The NI Compact Vision System is my go-to solution for vision applications where reliability and uptime are key,” said Robert Eastlund, vice president of sales for Graftek Imaging Inc. “Now I can leverage the easy connectivity and high throughput of USB3 while taking advantage of new features for high-performance processing and HMI integration. The NI CVS-1459RT enables high-resolution, high-speed industrial vision solutions.”

The NI CVS-1459RT is programmed with either LabVIEW system design software or Vision Builder for Automated Inspection (AI). Engineers have the option of using LabVIEW FPGA to further customize the FPGA-enabled I/O and tightly synchronize vision inspection results with other parts of industrial systems, such as encoders and proximity sensors.

The NI CVS-1459RT is based on the LabVIEW reconfigurable I/O (RIO) architecture, an integral part of the NI graphical system design platform. A modern approach to designing, prototyping and deploying embedded monitoring and control systems, graphical system design combines the open LabVIEW programming environment with commercial off-the-shelf hardware to dramatically simplify development so engineers can combine powerful vision tools, I/O, industrial communication, data logging and human machine interfaces (HMIs) into a single environment.

Key Benefits

  • The rugged form factor is ideal for industrial applications up to 55 ºC
  • Synchronization with automation devices for camera and lighting triggering via onboard industrial I/O
  • High-bandwidth camera interface with dual USB 3.0 ports for compatibility with the latest low-cost USB3 Vision cameras; ability to use ports with peripherals such as external storage for logging data
  • Processing power with quad-core Intel Atom processor and 64-bit NI Linux Real-Time OS
  • Board-level versions available for OEM applications

>> For more information on the NI CVS-1459RT, click here
