Wachendorff: Incremental Rotary Encoders

The WDGI series has enhanced performance.

Dec 31st, 2014

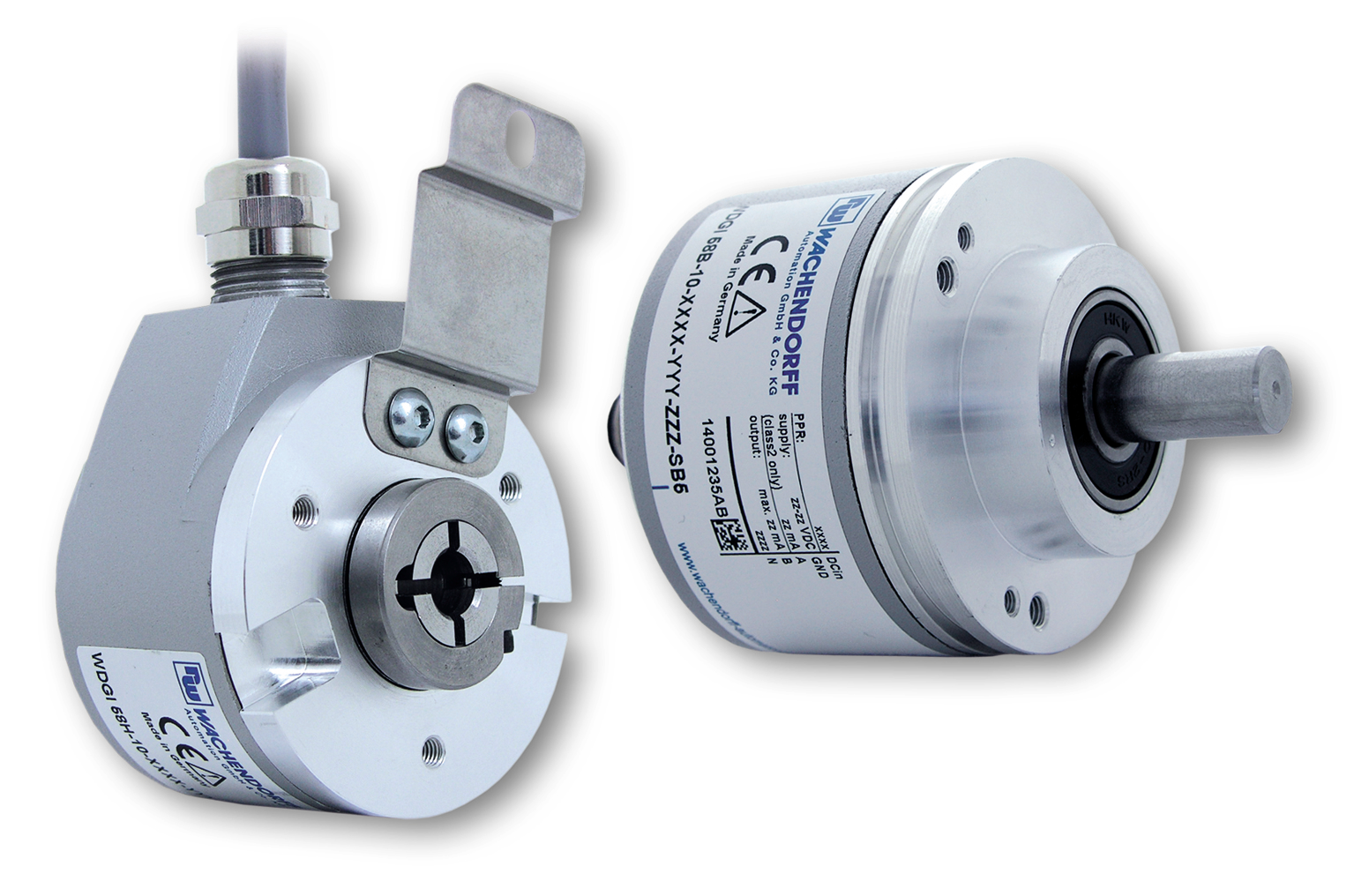

Aw 35554 1501np Wachendorff

The company's WDG series of incremental encoders has been enhanced and renamed the WDGI series. The operating temperature range of the standard encoder with connector outlet has been expanded to -40 to 85 °C; resolution to 1,200 ppr is available with pulse frequencies of up to 600 kHz (TTL) or 2 MHz (HTL). Units are available with maximum bearing loads up to 500 N in both axial and a radial load directions. They feature die-cast aluminum housings with an eco-friendly powder coating and protection class up to IP67, with shaft sealed to IP65. The units offer full connection protection at 10 VDC up to 30 VDC, and feature an optional pressure compensation membrane for use where temperatures change quickly in high-humidity environments.

>>For more information on this product, click here
Wachendorff Automation GmbH & Co. KG
www.wachendorff-automation.com
