High-Pressure Coriolis Flow Meter

Nov. 3, 2016

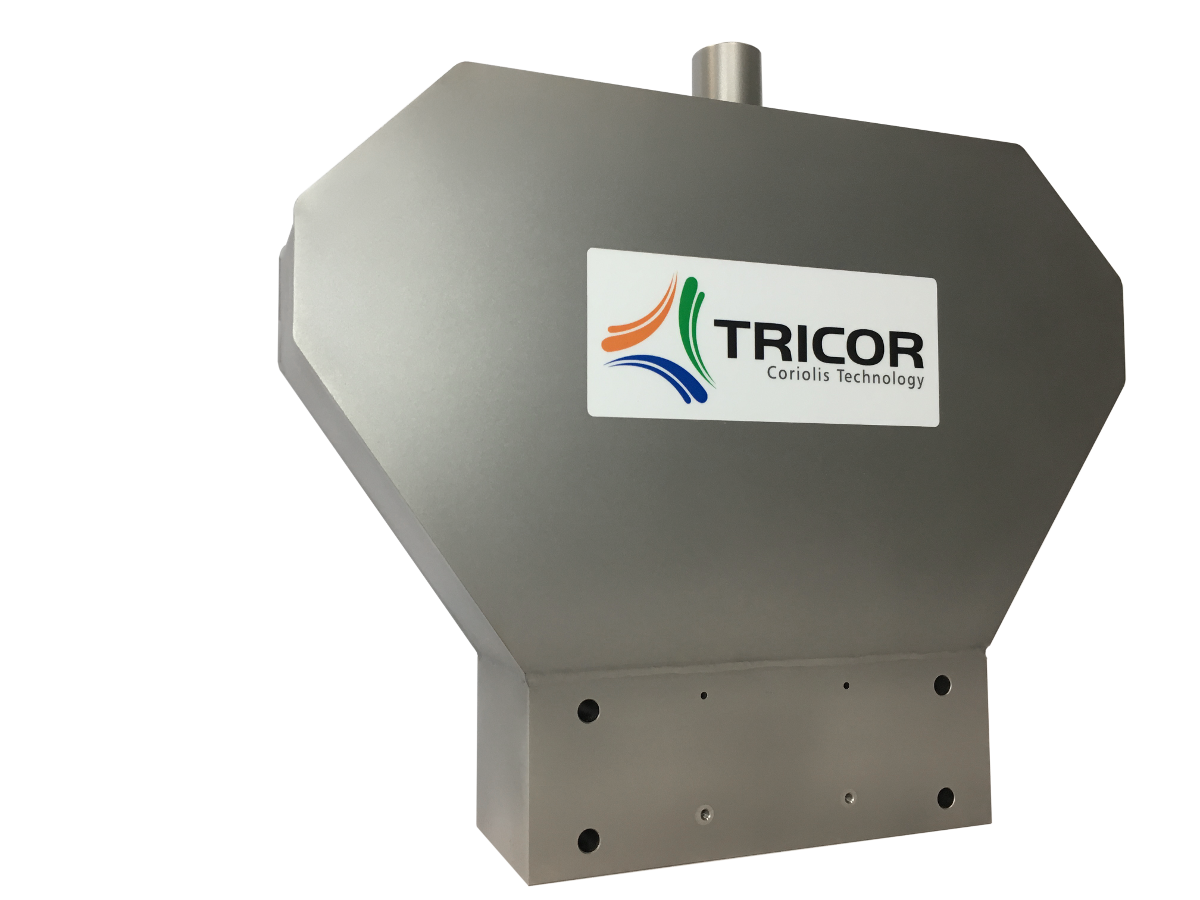

The TCMH 0450 from TRICOR flow is aimed at high pressure chemical injection applications in the Oil & Gas Industry.

It is also suggested for gas measurement in applications such as engine test benches, hydrogen fuel stations and high pressure gas measurement in numerous other industries. It is available in three different pressure ratings: up to 15,200 psi (1050 bar); up to 10,000 psi (690 bar) and up to 6,000 psi (414 bar). Nominal flow rates range from 394 kg/h to 316 kg/h at a 10-bar pressure drop to 254 to 184 kg/h at a 50 bar pressure drop. Rated accuracy is ±1% of reading, mass repeatability is ±0.5% of reading, and zero stability is 0.45 kg/h (0.0165 lb/min). Medium temperature range is -40 to 100 ºC (-40 to 212 ºF), while ambient temperature range is -40 to 70 ºC (-40 to 158 ºF). Hazardous area approvals include CSA – US & Canada, ATEX and IECEx.

>>For more information on this product, click here
Tricor Flow
