Fast Rotational Speed Detection

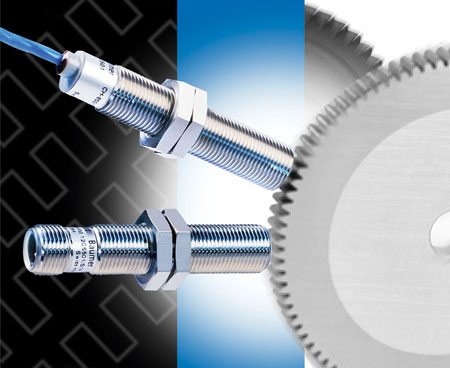

With a maximum switching frequency of 20kHz, magnetic Hall Sensors are said to perform up to five times faster than inductive sensors, and are designed for detecting moving ferromagnetic objects such as toothed wheels, gears or racks.

Apr 6th, 2010

Aw 1966 1004 Baum

These high-resolution sensors feature IP68-rated housings to allow reliable operation in harsh environments exposed to vibration, shock and contaminants such as dust and oil. As Hall sensors contain no moving parts and experience little wear, they can replace incremental encoders for detecting rotational speed or direction. These sensors withstand temperatures ranging from -40°C to +120°C and offer an operating voltage range from 8VDC to 28VDC.

Baumer
www.baumer.com
800.937.9336
