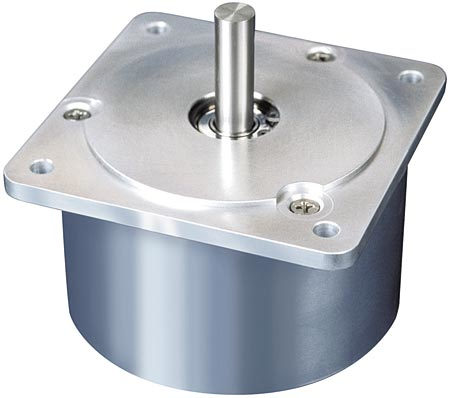

Brushless DC Motors

As the latest addition to the vendor’s motion control products family, the 3.4-inch diameter NEMA DIN 34 Series brushless DC motors are available in three standard frame lengths of 2.0, 2.6, and 3.2 inches with rear shaft extension as a provision for encoder mounting.

Jul 1st, 2008
Aw 3721 0807 Beik
Typical operating speeds range from 6,000RPM to 18,000RPM, with continuous stall (and peak) torque ratings of 50oz.-in. (120oz.-in.), 100oz.-in. (250oz.-in.), and 135oz.-in. (350oz.-in.) respectively. Other torques and operating speeds are also available in modified configurations.

BEI Kimco Magnetics
www.beikimco.com
800.572.7560
