Integrated Stepper Motors with Profinet

March 24, 2016

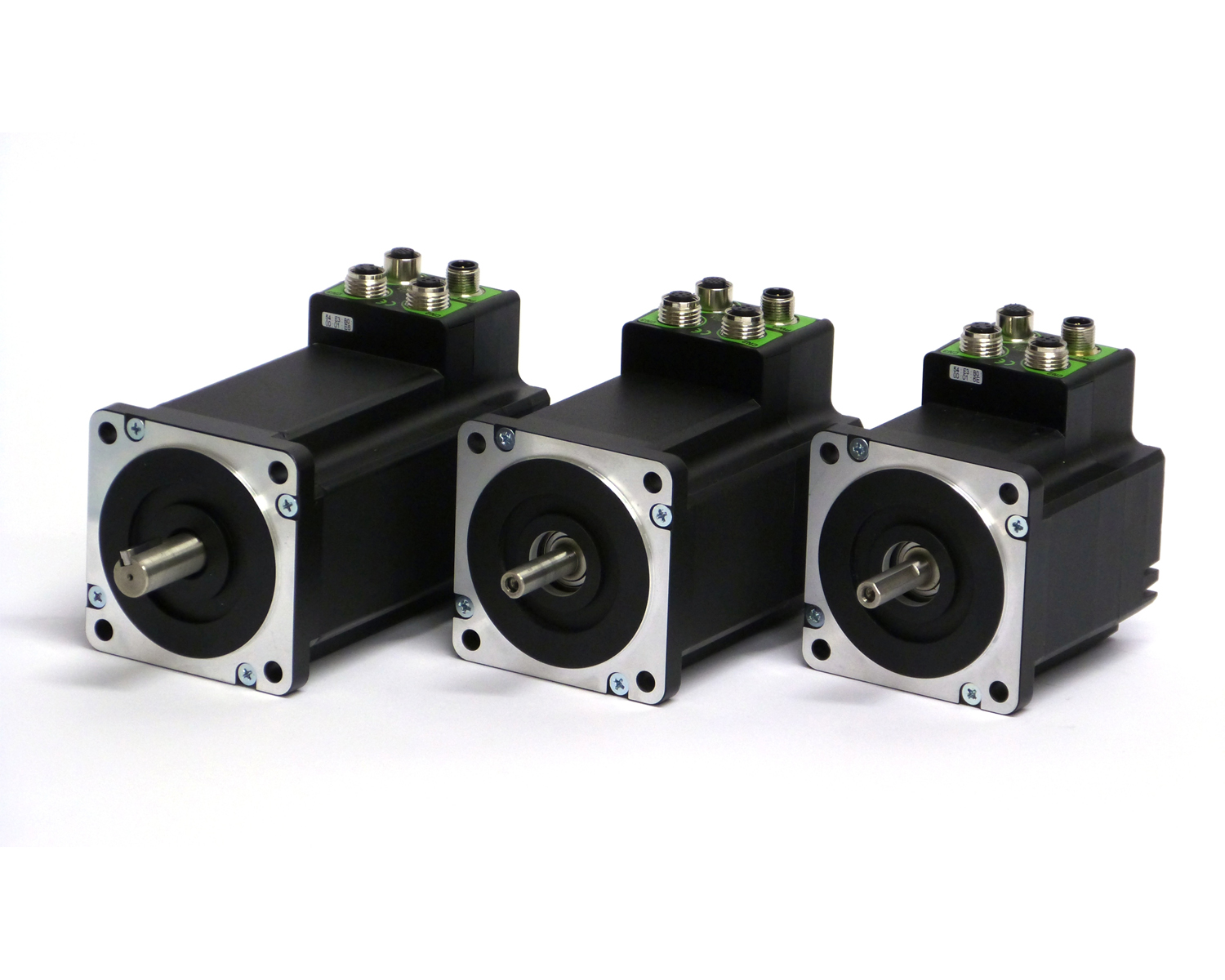

The NEMA 34 Series of integrated steppers with programmable controllers from JVL feature the Profinet industrial Ethernet.

Available in four torque ratings of 3.0 Nm (26.6 in. lb), 6.0 Nm (53.1 in. lb.), 9.0 Nm (79.7 in. lb.), and 12.0 Nm (106.2 in. lb.), these compact integrated steppers (the MIS340 is just 95 mm (3.74 in.) long, include all necessary electronics within the IP67 rated motor housing. They are suggested for industrial, medical, inspection, testing, and processing applications. The expanded Ethernet protocols connect to Ethernet bus systems such as EtherCAT, Ethernet I/P, Powelink, ModbusTCP, Sercos III and Profinet. Additionally they are available with Bluetooth, ZigBee, WLAN, PLC, RS-485, and CANbus. Options include: Electronic gearing, 9.53 mm (0.375 in.) or 14 mm (0.551 in.) diameter shafts, absolute multi-turn encoder, and planetary gear heads. The steppers feature 409,600 steps per revolution (4,096 microsteps per step) for smooth and quiet operation. The integrated PLC features eight I/Os, RS-422 and RS-485 connections for encoders, and point-to-point or multi axes operations to 254 axes. The 12-80 VDC supply provides high torque (0-9 A RMS, 12.6 A peak) at high speed, and the control 12 to 28 VDC can maintain position value, etc. in emergency situations.

>>For more information on this product, click here
JVL Industri Elektronik A/S
http://www.jvlusa.com/
513.877.3134
