Integrated Servo Motor and Drive Now Has PROFINET Industrial Ethernet

The Tolomatic ACSI integrated servo/motor/controller is now available with PROFINET Industrial Ethernet protocol, allowing engineers to design easy-to-use and cost-effective electric actuator solutions for single-axis applications.
Related To:
Aug. 15, 2017

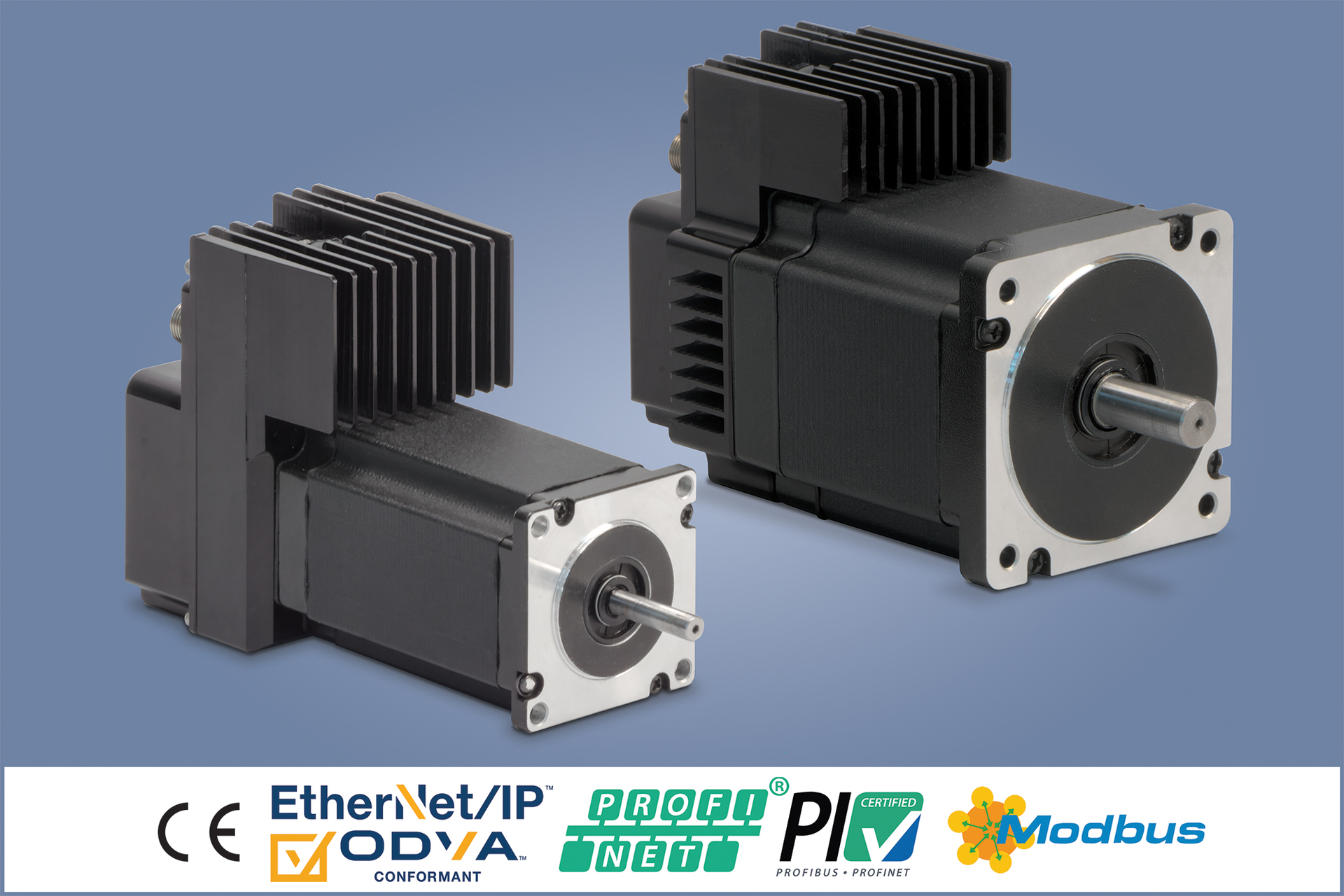

Aw 145547 1708np Tolomatic

The integrated package is suitable for replacing pneumatic cylinders and automating any simple axis of motion with Siemens or other PROFINET-enabled PLCs. Adding the PROFINET protocol to the existing EtherNet/IP and Modbus-TCP options for the ACSI controller gives OEMs flexibility with multiple PLC vendors while being able to standardize on a single mechanical / actuator design. With built-in configurations for the company’s electric actuators, the ACSI integrated controller automatically configures the motor, actuator, safety limits and other key settings inside the controller for quick and seamless integration. Features include a choice of NEMA-23 and NEMA-34 frame sizes; IP65 rating, M12 connectors; 10 to 60 VDC input supply; dual Ethernet ports supporting star, daisy chain and ring topologies; PI Certification for PROFINET, an available GSDML file; Siemens Archive of Data Blocks & Function Blocks for easy integration; and a Siemens integration guide. Options include cables, planetary gearboxes in 3:1, 5:1, and 10:1 and 48 VDC power supplies.

>>For more information on this product, click here
Tolomatic, Inc.
www.tolomatic.com
877.385.2234
