Certified Temperature Measurement Precision

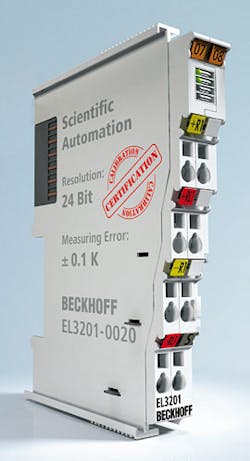

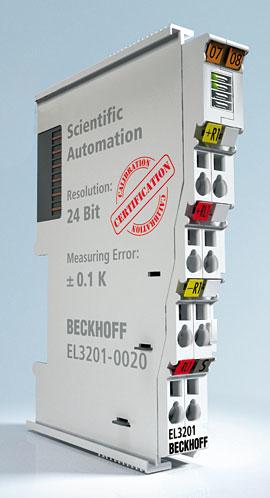

The EL3201-0020 temperature measurement terminal is intended to bring high-performance measurement technology into a simplified, cost-effective architecture.

Mar 5th, 2010
Aw 2051 1003 Beckhf
This EtherCat I/O terminal enables direct connection of a resistance sensor (PT100) using 4-wire technology. The characteristic curves of the sensors are implemented over their complete measuring range and are made available to the higher-level control system in a suitably linearized form. Measuring error is reduced to ±0.1K of the temperature measuring range. The factory calibration is recorded in an individual certificate, as required for high-precision measuring equipment. Online download of the certificate is provided. The terminal system is designed to simplify the user’s integration of high-precision measurement technology without the need for complex ”black box” systems.

Beckhoff Automation LLC
www.beckhoffautomation.com
952.890.0000
