Wago: Current Transformer Disconnect Terminal Blocks

The 2007 Series simplify current transformer testing, as well as increase safety, in power monitoring applications.

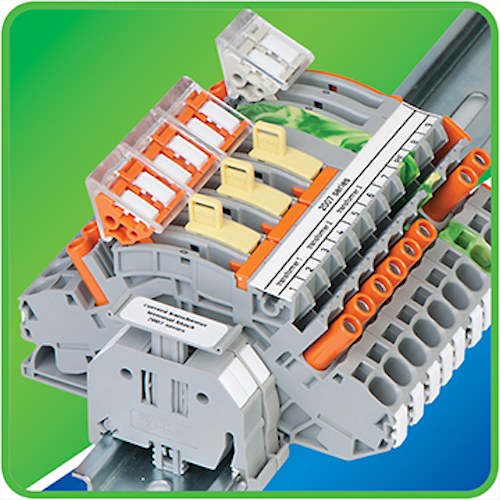

Aw 18191 1309np Wago

The units feature an intuitive orange three-position (Operating, Shorting and Measuring) disconnect lever. Engaging the lever fully automatically short-circuits the transformer when using the required adjacent push-in jumper. This prevents a dangerous increase in voltage that could pose a threat to people and equipment when troubleshooting or calibrating relays, meters, instruments, and control systems. At 99 mm long and 8 mm wide, the terminal blocks reduce panel space by up to 55% and associated costs by up to 25% when compared to traditional test switch products. The unit's touch proof design does not require a separate cover to be installed which eases access to test plugs and meter connections. Four marking locations help ensure wiring accuracy: on the disconnect link, on top of the terminal block and on the sides. Marking is provided via WMB marker tags or a continuous marking strip.

>>For more information on this product, click here

Wago Corporation
