InGaAs Line Scan Camera for Inline Nondestructive Inspection Using SWIR imaging

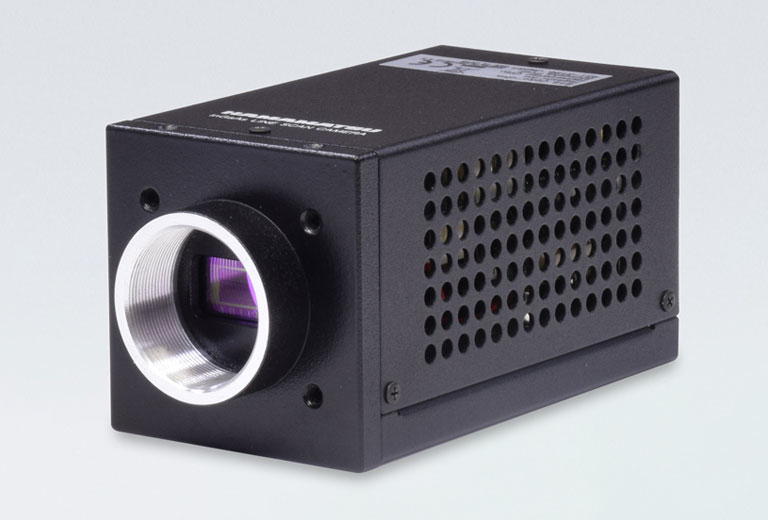

Hamamatsu’s C15333-10E InGaAs line scan camera uses SWIR (short-wavelength infrared) imaging.

1912np Hamamatsu

The unit is a high-sensitivity, low-noise camera with a fast line rate, and is suitable for industrial needs. Its high sensitivity in the SWIR region from 950 nm to 1700 nm, 1024-pixel array with 12.5 µm x 12.5 µm pixel size, and built-in pixel correction functions all contribute to high-accuracy inspection. The unit also ensures highly efficient and high-throughput inspection thanks to its fast line rate (40 kHz max.) and GigE interface. In addition, its compact design and low cost make it easy to integrate into inline inspection systems. The camera's dimensions are 49 mm x 49 mm x 100 mm, and it weighs only 250 g. In terms of cost, it is less expensive than InGaAs 2D cameras.

>>For more information on this product, click here
Hamamatsu Corp.
https://www.hamamatsu.com.
908.231.0960
