Linear Position Sensors for Heavy Duty Industrial and Extreme Environment Civil Engineering Applications

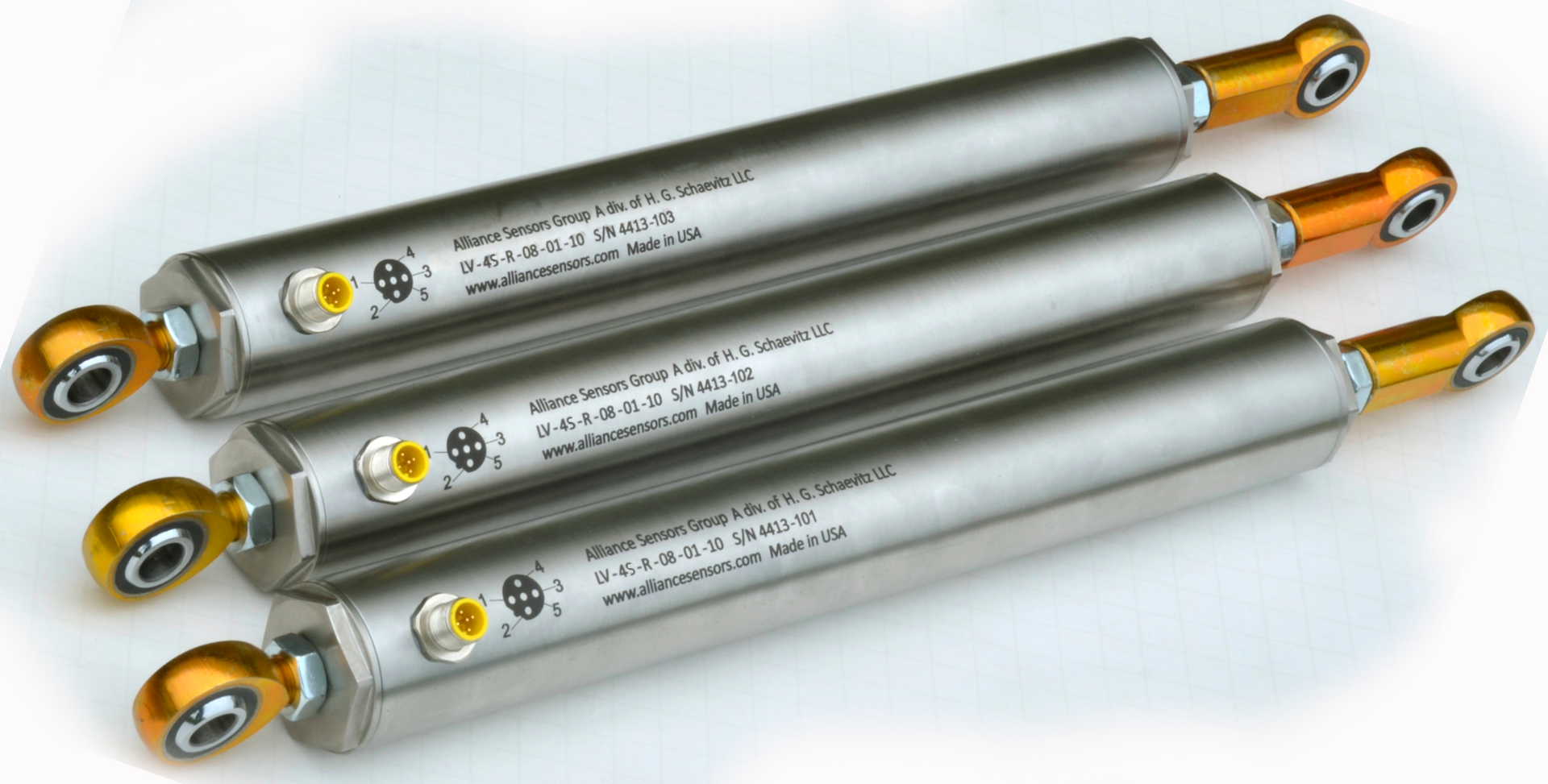

The LV-45 linear position sensors from Alliance Sensors Group are specifically designed for measuring applications requiring rugged devices.

2003np Alliancesensors

The sensors can withstand the high vibration and severe shock environment found in steel, aluminum, and paper mills, as well as extremes of temperature and humidity found in most outdoor applications where many other types of linear position sensors cannot survive. The design uses a proprietary inductive technology that allows it to replace traditional DC-LVDTs in most applications; its simple coil design permits the sensor to be both shorter and more rugged than its DC-LVDT counterpart while operating over a wider temperature range. Units are available with optional mounting flanges, rod eye ends, connector or cable terminations, and a captive connecting rod assembly that cannot break loose. The SenSet range adjustability feature allows the user to scale the sensor's zero and full span output to the actual range of motion of the workpiece being measured after the sensor is installed. Other features include an operating temperature of -40 to 85 ºC, ranges from 100-450 mm with various analog outputs and double shaft seals to keep dirt and grime out of the bore The ½-20 UNF externally threaded core rod, the core is captivated so it can't come out.

>>For more information on this product, click here
Alliance Sensors Group
http://alliancesensors.com/
856.727.0250
