Vibration Sensor

June 11, 2024

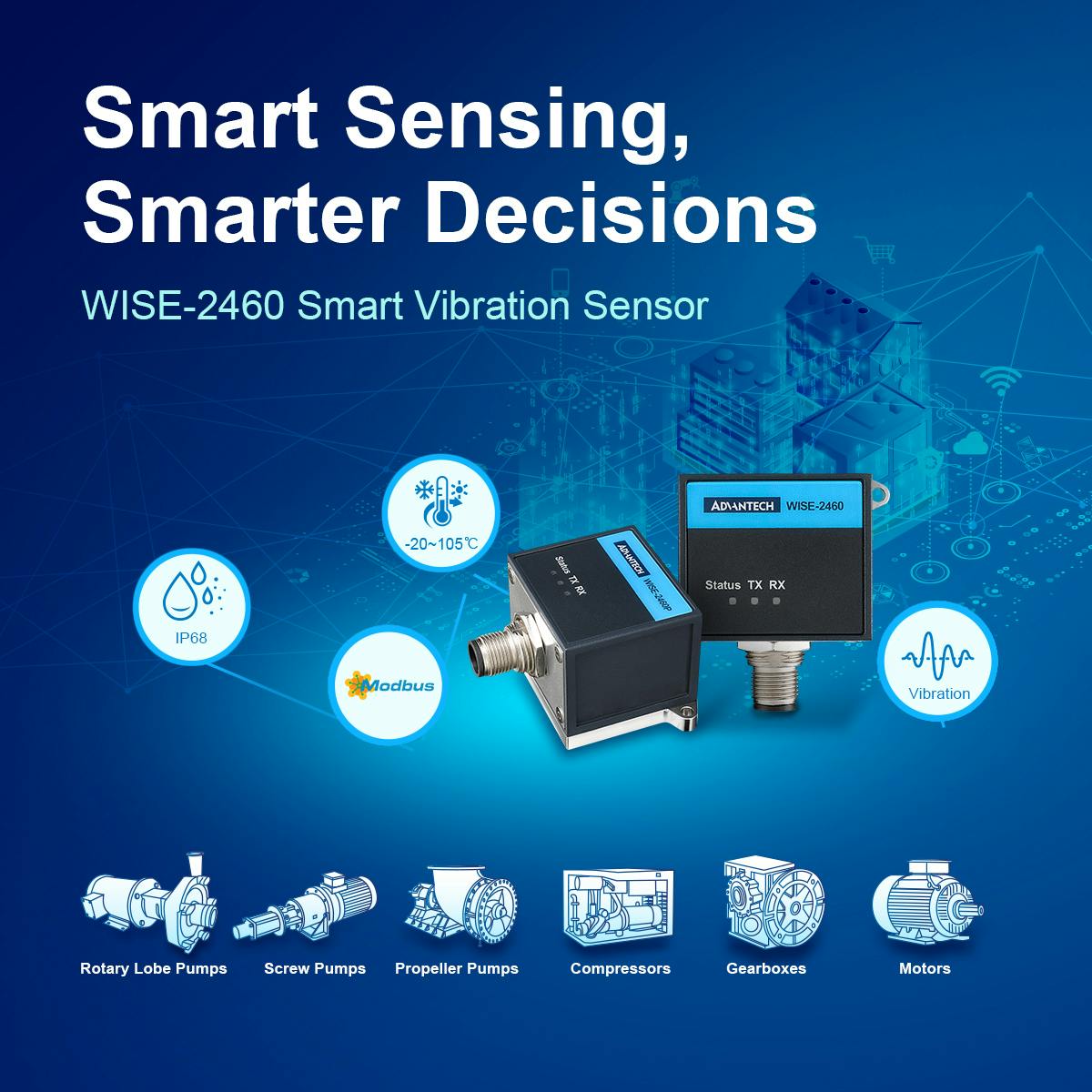

The Wise-2460 vibration sensing solution is designed for monitoring equipment RPM and frequency detection ranges. The device features an ARM Cortex-M7 processor, a high-detection-range Z-axis accelerometer, and a temperature sensor. Additionally, it supports RS-485 serial communication through Modbus/RTU protocols and boasts Z-axis sensitivity spanning from 5 to 10000Hz. The Wise-2460 is housed in an IP68-rated enclosure, operates in a temperature range of -20°C to 105°C, and is ISO 10816-1 compliant. It also comes with Advantech’s Wise studio software for device management, monitoring and data visualization. This tool enables cloud connectivity, firmware updates and the creation of personalized data dashboards.
