Matrox Imaging Expands Capabilities of Leading CoaXPress Series of Frame Grabbers with Data Forwarding Model

Matrox Rapixo CXP series now includes a data forwarding model to distribute demanding processing over multiple PCs.

This content was submitted directly to this website by the supplier.

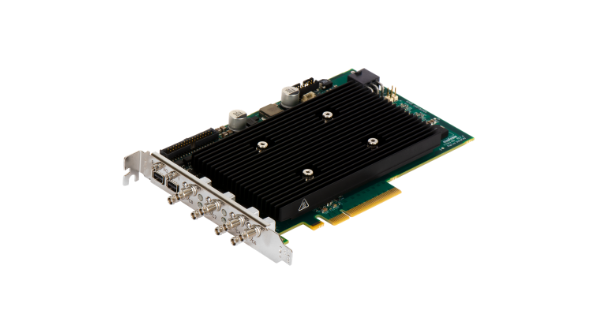

Matrox Rapixo Cxp Quad Df

Matrox® Imaging today reveals the forthcoming release of a new addition to its renowned Matrox Rapixo CXP series of frame grabbers. The latest product in this series—the Matrox Rapixo CXP Quad Data Forwarding—combines CoaXPress® 2.0 connectivity with a data forwarding option to help distribute image processing across multiple computers. The Data Forwarding capability will be available on two boards, one offering CXP-6 speed, and the other supporting CXP-12 speed.

Matrox Imaging’s CoaXPress frame grabbers offer very high-rate acquisition while minimizing CPU load. PC-based machine vision systems equipped with a Matrox Rapixo CXP frame grabber can thus deliver higher throughput or perform more demanding processing.

Data forwarding to leverage processing power from multiple computers
Matrox Rapixo CXP Quad Data Forwarding can now distribute image-processing tasks across multiple computers. This works by relaying images to another computer using four output connections running at up to 12.5 Gbps. The data forwarding functionality re-transmits all image data prior to being stored in the onboard memory, and is accomplished without the involvement of the host computer, minimizing system latency.

Multiple Matrox Rapixo CXP Quad Data Forwarding boards can be used, in a daisy-chain manner, to transfer an image to multiple computers. Each computer can then process a different part of the image or perform different processing on the whole image.

Wide selection of CoaXPress connectivity available
The Matrox Rapixo CXP series of frame grabbers include models with one, two, or four connections for interfacing to independent cameras. Supporting data rates of either up to 6.25 Gbps (CXP-6) or up to 12.5 Gbps (CXP-12) per connection, the Quad, Dual, and Single models provide right-sized connectivity.

Matrox Rapixo CXP Pro models—based on Xilinx Kintex® UltraScale™ devices—allow for integration of controlling, formatting, and streaming logic of various interfaces directly on the frame grabber. Paired with the Matrox FDK, a specialized development kit, the Pro models support development of custom FPGA configurations to relieve the host system of intensive image-processing functions.

“The FPGA offload of the Matrox Rapixo Pro can be used in many applications,” says Mathieu Larouche, product manager, Matrox Imaging, “while the Matrox Rapixo CXP Quad Data Forwarding solves problems that a single computer simply cannot tackle alone. With this new model in the series, Matrox Imaging delivers yet another option to help with demanding processing tasks.”

Matrox Rapixo CXP Quad Data Forwarding with CXP-6 speed will be available in November 2020. Matrox Rapixo CXP Quad Data Forwarding with CXP-12 speed will be available in Q1 2021.

About Matrox Imaging
Matrox Imaging is an established and trusted supplier to top OEMs and integrators involved in machine vision, image analysis, and medical imaging industries. The components consist of smart cameras, 3D sensors, vision controllers, I/O cards, and frame grabbers, all designed to provide optimum price-performance within a common software environment. For more information, visit
