CompactPCI Serial Gigabit Ethernet Switch

Aug. 1, 2011

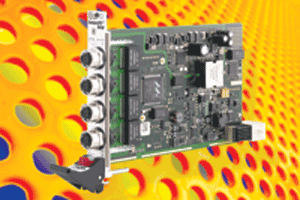

The G301 is a rugged 3U Ethernet switch that features four Gigabit Ethernet (GigE) ports via RJ45 or M12 connectors in the front, complying with the recently ratified PICMG CompactPCI Serial standard.

An optional fifth GigE port can be made accessible at the rear via the J6 connector as well. The G301 supports full and half duplex, fast non-blocking store-and-forward switching and autonegotiation, as well as Layer-2 switching. It has integrated self-test mechanisms, is fault-tolerant and restores itself automatically: If a link is temporarily unavailable, it will work again after the disturbance without any restart or reset. The board supports Power-over-Ethernet (PoE) with Power Sourcing Equipment (PSE) for up to four external devices with a total power consumption of 28 W. It has especially been developed for mobile communication in harsh environments and is certified for operation in an extended temperature.

MEN Micro Inc.
www.menmicro.com
215.542.9575
