Video Capabilities Integrated Into Graphic HMIs

June 1, 2011

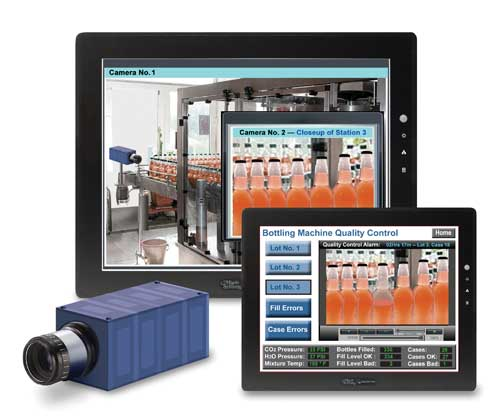

Graphic HMI video capability integrates both live and recorded video into human machine interface (HMIs) applications.

From general surveillance of a plant to important process images when alarms or triggers occur, video imagery can be viewed and also stored on a removable device such as SD card or USB drive for later review. Video integration function lets users connect a camera to the HMI to view or record live video in NTSC or PAL formats. Users can connect two different cameras to the HMI, and import video on two different channels. The system even captures video when viewing windows are closed, freeing operators to use other HMI screens. Company’s media player provides functional image review.

Maple Systems
www.maplesystems.com
425.745.3229
