DIN Rail Mount DC-DC Converters

April 1, 2011

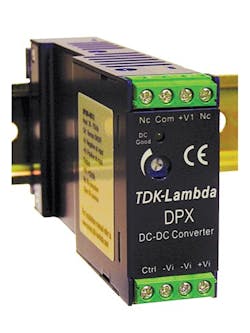

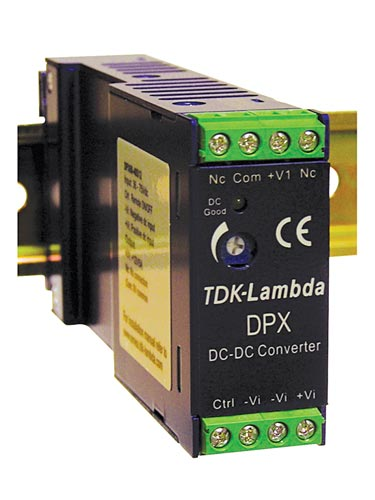

Designed to meet demand for DC-DC converters that can be easily mounted onto DIN rails, DPX Series converters are available with both 2:1 and 4:1 input voltage ranges covering from 9.5V to 75V, with 40W to 60W output ratings.

The DPX models are available with single, dual or triple outputs. The single output models are available with an output voltage of 5V, 12V or 15V and the dual-output models have +/-12V or +/-15V outputs. The triple-output models provide a +5V main with either +/-12V or +/-15V outputs. The single output models can be adjusted +/-10% of nominal output via a front-panel mounted potentiometer. A green LED indicator provides visual confirmation of output status. DPX Series models are enclosed in a rugged metal case and can be mounted on either a TS35/7.5 or TS35/15 standard DIN rail. Typical operating efficiencies are up to 86%.

TDK-Lambda Americas Inc.
www.us.tdk-lambda.com/lp
619.575.4400
