Network Modules Allow Multiple Connections

Dec. 12, 2007

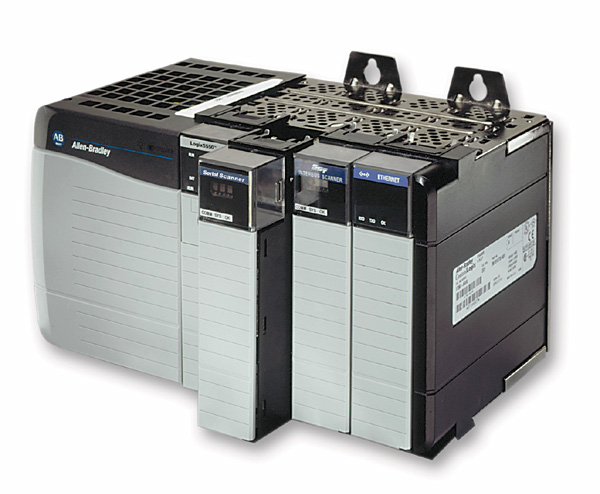

The SST Modbus and Modbus TCP network interface modules are said to provide a fast and easy way to connect networks to the Allen-Bradley ControlLogix system.

The modules are available in 2 versions. The SST-SR4-CLX-RLL module offers 4 independent RS232/RS485 serial ports operating as master and/or slave Modbus protocols supporting ASCII and RTU formats.

The SST-ESR2-CLX-RLL module provides 2 serial ports and 1 Ethernet port executing Modbus TCP (UDP and IP) protocol in both client and server modes simultaneously. The configuration set-up to exchange data is accomplished through a Windows software console that supports the Allen-Bradley Remote Link Library (RLL) feature, allowing remote monitoring and downloading of changes to the network configuration.

Woodhead Industries, div of Molex Inc.
www.woodhead.com
847.753.6986
